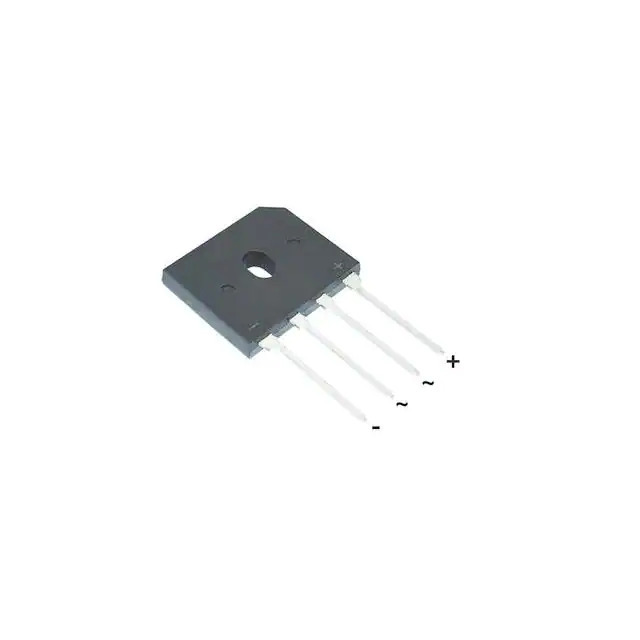

GBU2010 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

GBU2010

Part No GBU2010
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE,1000V20A, PACKAGE GBU
Datasheet
GBU2010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 10 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU2010
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367896-GBU2010
Ultra Librarian 3D Model Ultra Librarian GBU2010 CAD Model

Description

The GBU2010 is a single-phase bridge rectifier diode from SMC Diode Solutions. It has a current rating of 20 A and a maximum forward voltage of 1.1 V @ 10 A.

  • Current Rating: 20 A
  • Forward Voltage: 1.1 V @ 10 A
  • Voltage Rating: 1 kV
  • Reverse Leakage Current: 5 μA @ 1000 V
  • Mounting Type: Through-Hole
  • Package: 4-ESIP
  • Technology Series: Standard
  • Temperature Range: -55°C to 150°C
  • REACH: Compliant
  • ECCN: EAR99
