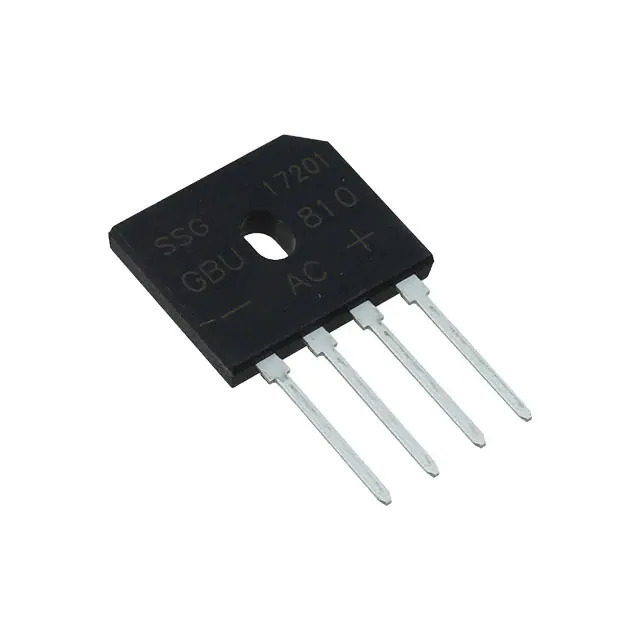

Same model may have multiple batches, images only for reference.
GBU610G SMC Diode Solutions
Same model may have multiple batches, images only for reference.

GBU610G

Part No GBU610G
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 6A GBU
Datasheet
GBU610G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 6 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU610
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367867-GBU610G
Ultra Librarian 3D Model Ultra Librarian GBU610G CAD Model

Description

The GBU610G is a single-phase bridge rectifier designed for general-purpose rectification applications.

  • Current Rating: 6A
  • Voltage Rating: 1kV
  • Diode Type: Standard
  • Forward Voltage: 1.1V @ 6A
  • Mounting Type: Through-Hole
  • Package: 4-ESIP
  • Manufacturer: SMC Diode Solutions
  • Product Status: Active
  • Operating Temperature: -55°C to 150°C
  • Reverse Leakage Current: 5μA @ 1000V
  • REACH: Compliant
  • ECCN: EAR99
