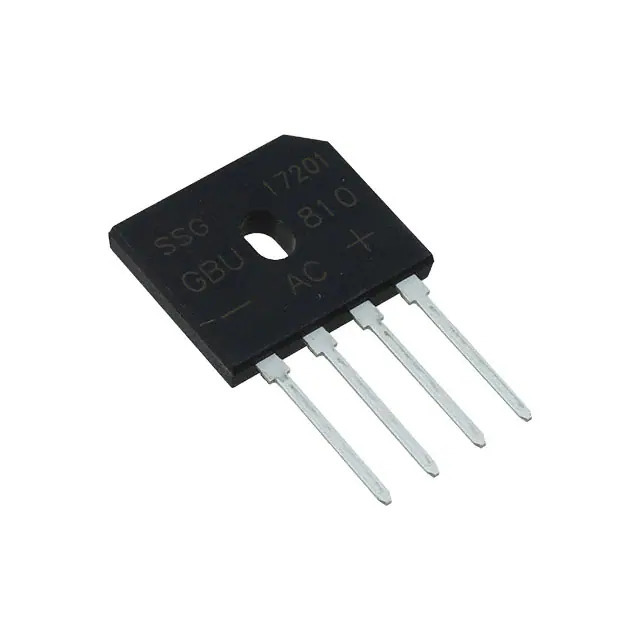

Same model may have multiple batches, images only for reference.
GBU808G SMC Diode Solutions
Same model may have multiple batches, images only for reference.

GBU808G

Part No GBU808G
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 8A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 8 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU808
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367858-GBU808G
Ultra Librarian 3D Model Ultra Librarian GBU808G CAD Model

Description

The GBU808G is a bridge rectifier diode from SMC Diode Solutions.

  • Max Average Rectified Current: 8A
  • Forward Voltage Drop: 1.1V @ 8A
  • Max Peak Reverse Voltage: 800V
  • Diode Configuration: Single Phase
  • Package: 4-ESIP
  • Mounting Type: Through Hole
  • Temperature Range: -55°C to 150°C
  • RoHS: Compliant
  • ECCN: EAR99
  • Product Status: Active
