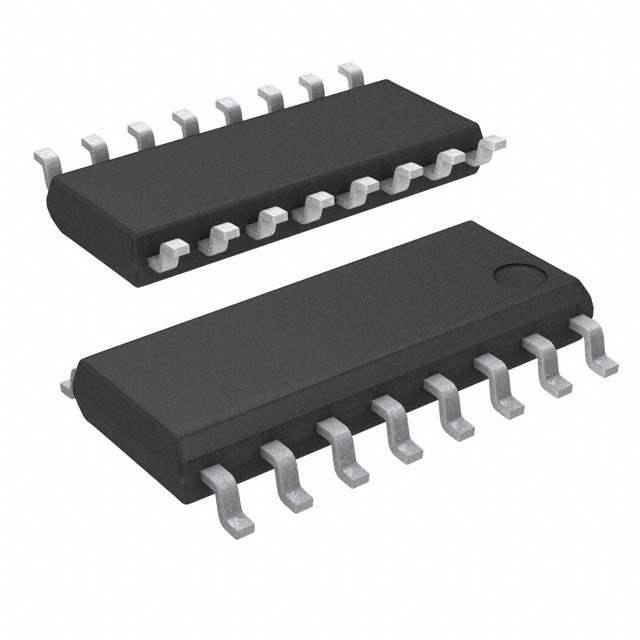

S16LC05-8 Real Image
Same model may have multiple batches, images only for reference.

S16LC05-8

Part No S16LC05-8
Manufacturer SMC Diode Solutions
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.8VC 16SO
Datasheet
S16LC05-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr SMC Diode Solutions
Series S16LCXX-8
Package Tape & Reel
Product Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 8
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 9.8V
Current - Peak Pulse (10/1000µs) 1A
Power - Peak Pulse 300W
Power Line Protection Yes
Applications Automotive, Ethernet, Telecom
Capacitance @ Frequency 25pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Base Product Number S16LC05
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 662278-S16LC05-8
Ultra Librarian 3D Model Ultra Librarian S16LC05-8 CAD Model

Description

The 662278-S16LC05-8 is a steering type TVS diode designed for circuit protection in automotive, Ethernet, and telecom applications.

  • Channels: eight unidirectional
  • Reverse Standoff Voltage: 5V (typical)
  • Voltage Breakdown: 6V (minimum)
  • Clamping Voltage: 9.8V @ peak pulse current
  • Power Peak Pulse: 300W
  • Capacitance: 25pF @ 1MHz
  • Mounting: Surface Mount
  • Package: 16-SOIC
  • Manufacturer: SMC Diode Solutions
  • Standard Package: 2,500 pieces
  • Operating Temperature Range: -55°C to 125°C (TJ)
  • Compliance: REACH
