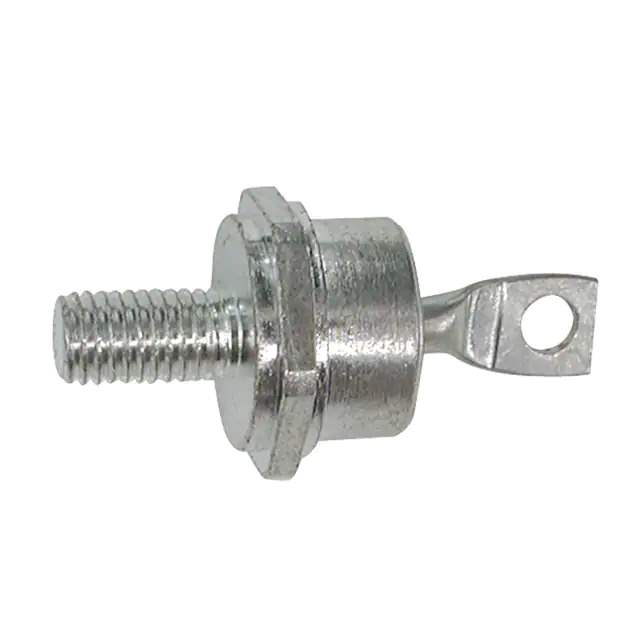

70HF40 Real Image
Same model may have multiple batches, images only for reference.

70HF40

Part No 70HF40
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 70A DO5
Datasheet
70HF40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 70 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 400 V
Mounting Type Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847482-70HF40
Ultra Librarian 3D Model Ultra Librarian 70HF40 CAD Model

Description

The 847482-70HF40 is a standard recovery diode rectifier suitable for applications requiring a maximum reverse voltage of 400V and an average rectified current of 70A manufactured by Solid State Inc..

  • Maximum Reverse Voltage: 400V
  • Average Rectified Current: 70A
  • Forward Voltage: 1.3V @ 70A
  • Current Reverse Leakage: 200µA @ 400V
  • Package: DO-203AB, DO-5 stud mount
  • Operating Temperature: -65°C to 150°C
  • Status: Active
