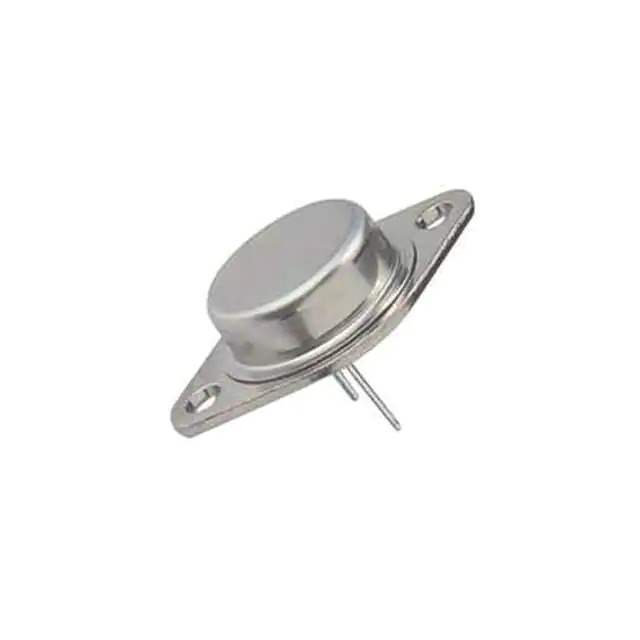

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Solid State Inc.
Package Bulk
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 16 A
Voltage - Collector Emitter Breakdown (Max) 250 V
Vce Saturation (Max) @ Ib, Ic 1.4V @ 800mA, 8A
Current - Collector Cutoff (Max) 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 8A, 4V
Power - Max 250 W
Frequency - Transition 4MHz
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-3
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 640902-MJ15024
Ultra Librarian 3D Model Ultra Librarian MJ15024 CAD Model

Description

The 640902-MJ15024 is a bipolar transistor used in electronic circuits.

  • Category: Belongs to the Discrete Semiconductor Products category.
  • Transistor Type: Is a single NPN transistor.
  • Packaging: Packaged in bulk.
  • Standard Package: The standard package includes 10 pieces of the transistor.
  • Power Rating: The maximum power rating of this transistor is 250W.
  • Collector-Emitter Breakdown Voltage: The maximum collector-emitter breakdown voltage is 250V.
  • Collector Current: The maximum collector current is 16A.
  • Vce Saturation: Has a Vce saturation of 1.4V @ a base current of 800mA and collector current of 8A.
  • Collector Cutoff Current: The maximum collector cutoff current is 500µA.
  • DC Current Gain: The DC current gain is 15 @ a collector current of 8A and collector-emitter voltage of 4V.
  • Frequency Transition: The frequency transition of this transistor is 4MHz.
  • Mounting: Is designed for through-hole mounting.
  • Package/Case: Available in the TO-204AA, TO-3 package/case.
  • Supplier Device Package: The supplier device package is TO-3.
  • ECCN: The ECCN for this product is EAR99.
  • MSL Level: The MSL level is 1, indicating unlimited shelf life.
  • HTSUS Code: The HTSUS code for this product is 8541.10.0080.
  • Manufacturer: The manufacturer of this transistor is Solid State Inc.
