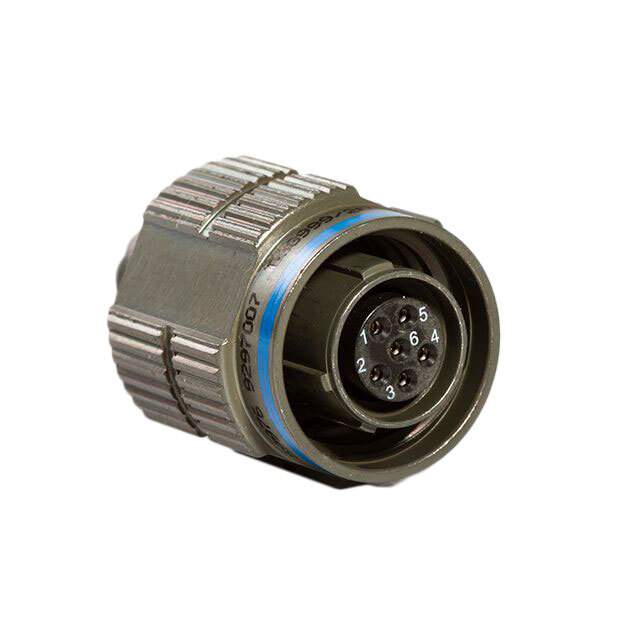

D38999/20WB99PN Real Image
Same model may have multiple batches, images only for reference.

D38999/20WB99PN

Part No D38999/20WB99PN
Manufacturer Souriau-Sunbank by Eaton
Catalog Circular Connectors
Description D38999/20WB99PN / 7 Position Circular Connector Receptacle, Male Pins Crimp
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Souriau-Sunbank by Eaton
Series Military, MIL-DTL-38999 Series III
Package Bag
Connector Type Receptacle, Male Pins
Number of Positions 7
Shell Size - Insert 11-99
Shell Size, MIL B
Mounting Type Panel Mount
Mounting Feature Flange
Termination Crimp
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Current Rating (Amps) 7.5A
Temperature Range - Operating -65°C ~ 175°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Insert Material Thermoplastic
Applications Aviation, Marine, Military
Base Product Number D38999/20WB
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.7040
Other Names 2899-D38999/20WB99PNS
Standard Package 1
Win Source Part Number 958727-D38999/20WB99PN
Ultra Librarian 3D Model Ultra Librarian D38999/20WB99PN CAD Model

Description

The Souriau-Sunbank by Eaton D38999/20WB99PN is a circular connector that has a receptacle with male pins and a crimp termination.

  • Number of Positions: 7
  • Series: Military, MIL-DTL-38999 Series III
  • Shielded: Yes
  • Ingress Protection: IP67, making it dust tight and waterproof
  • Shell Material: Aluminum
  • Shell Finish: Olive drab cadmium
  • Current Rating: 7.5A
  • Operating Temperature: -65°C to 175°C
  • Mounting: Panel-mounted
  • Mounting Feature: Flange mounting
  • RoHS: Non-compliant
