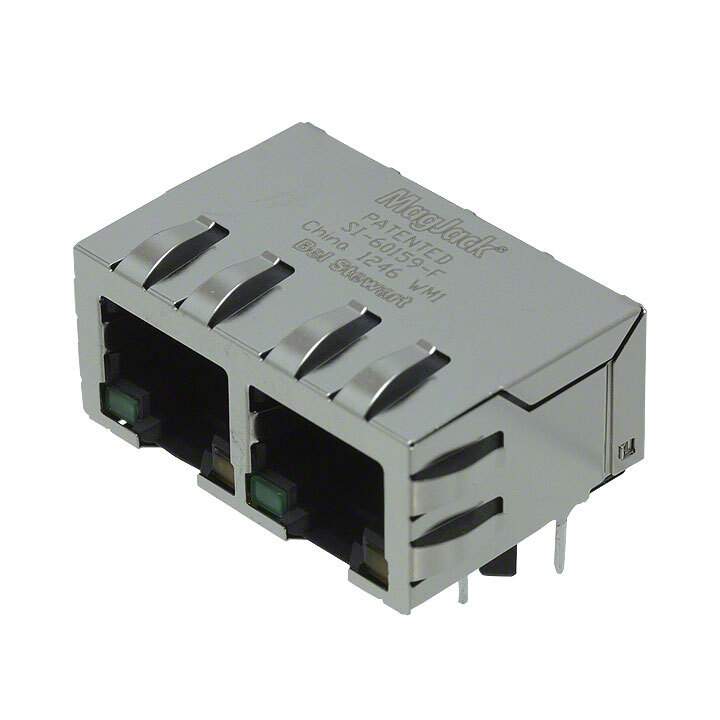

Same model may have multiple batches, images only for reference.
SS-748802SC5-YG-PG4-BZ Real Image
Same model may have multiple batches, images only for reference.

SS-748802SC5-YG-PG4-BZ

Part No SS-748802SC5-YG-PG4-BZ
Manufacturer Stewart Connector
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED
Datasheet
SS-748802SC5-YG-PG4-BZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 21 Weeks
Features Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
Manufacturer Stewart Connector
Series 74
Package Bulk
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Family Name SS-7488
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Quantity per package 32
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858470-SS-748802SC5-YG-PG4-BZ
Ultra Librarian 3D Model Ultra Librarian SS-748802SC5-YG-PG4-BZ CAD Model

Description

The SS-748802SC5-YG-PG4-BZ is a jack modular connector from Stewart Connector.

  • Type: 8p8c (RJ45, Ethernet) 90° angle (right) shielded, EMI finger Cat5
  • Package: Bulk
  • Mounting: Through-Hole
  • Category: Connectors
  • ECCN: EAR99
  • Market Status: Open market
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Estimated Production Lead Time: 21 weeks
  • Package Quantity: 32
