The 2STA2121 from STMicroelectronics is a high power PNP transistor that is designed to deliver exceptional performance in a wide range of applications. This silicon epitaxial planar transistor is part of the company's renowned portfolio of power semiconductors, which are recognized for their reliability, efficiency, and innovation.

Key Features

• High Collector-Emitter Breakdown Voltage: With a breakdown voltage (Vceo) of -80V, the 2STA2121 is capable of handling high voltage applications with ease, making it suitable for power supply and amplifier circuits.
• High Current Capability: The transistor can handle a continuous collector current (Ic) of up to -15A, which is ideal for high power switching and amplification requirements.
• Low Saturation Voltage: The device exhibits a low collector-emitter saturation voltage (Vce(sat)), which enhances its efficiency by minimizing power loss during operation.
• Complementary NPN Type: The 2STA2121 is complemented by the 2STC5949 NPN transistor, allowing for use in push-pull and other complementary configurations, which are common in high-fidelity audio amplifiers and other power applications.
• Fast Switching Speed: It offers fast switching speeds, which is beneficial in circuits that require quick response times.

Applications

The 2STA2121 is a versatile component that can be used in various applications, including:

• Audio power amplifiers
• Power management systems
• DC-DC converters
• Switching regulators
• Motor control circuits

Package and Quality

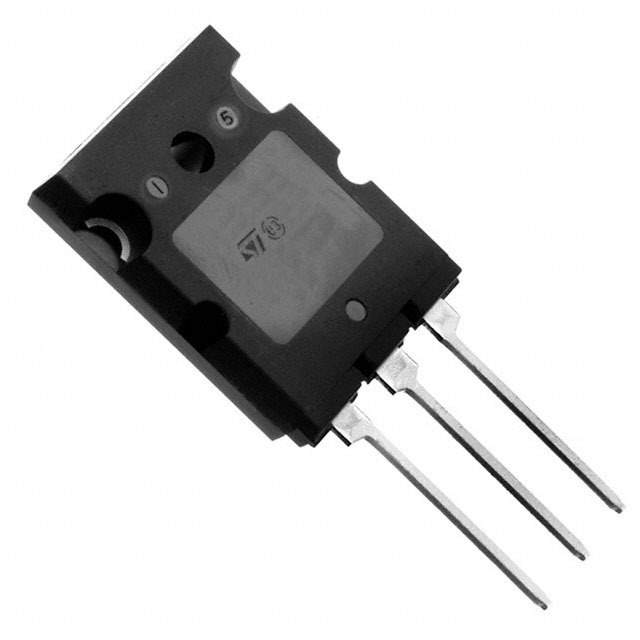

The 2STA2121 is housed in a TO-3P package, known for its high power dissipation capability. This package is well-suited for mounting on heat sinks, which is essential for maintaining thermal stability in high power applications. STMicroelectronics ensures that each transistor meets rigorous quality standards, providing designers and engineers with a reliable component for their high-performance circuit designs.
