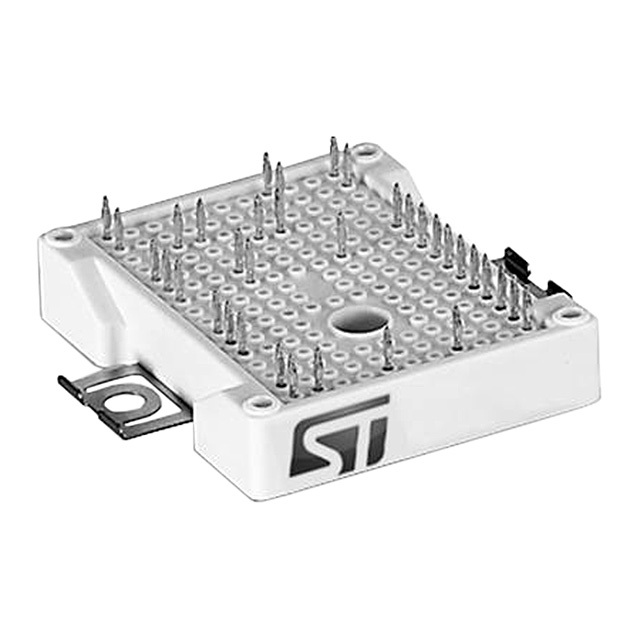

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsIGBT Modules
Manufacturer STMicroelectronics
Packaging Tray
Part Status Active
IGBT Type Trench Field Stop
Configuration Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) 650 V
Current - Collector (Ic) (Max) 50 A
Power - Max 208 W
Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 50A
Current - Collector Cutoff (Max) 100 μA
Input Capacitance (Cies) @ Vce 4.15 nF @ 25 V
Input Three Phase Bridge Rectifier
NTC Thermistor Yes
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package ACEPACK? 2
Base Product Number A2C50
Ultra Librarian 3D Model Ultra Librarian A2C50S65M2 CAD Model
