STMicroelectronics BAT30JFILM Schottky Diode

The BAT30JFILM is a highly efficient surface-mounted Schottky diode developed by STMicroelectronics, a global semiconductor leader known for its innovative and reliable components. This diode is designed to meet the rigorous demands of modern electronic circuits, providing a combination of low forward voltage drop and high switching speed.

Key Features

• Low Forward Voltage Drop: The BAT30JFILM is designed to have a very low forward voltage drop, which enhances the overall efficiency of the diode in applications where power conservation is critical.
• High Switching Speed: This diode offers fast switching capabilities, making it suitable for high-frequency applications that require quick transitions from conducting to non-conducting states.

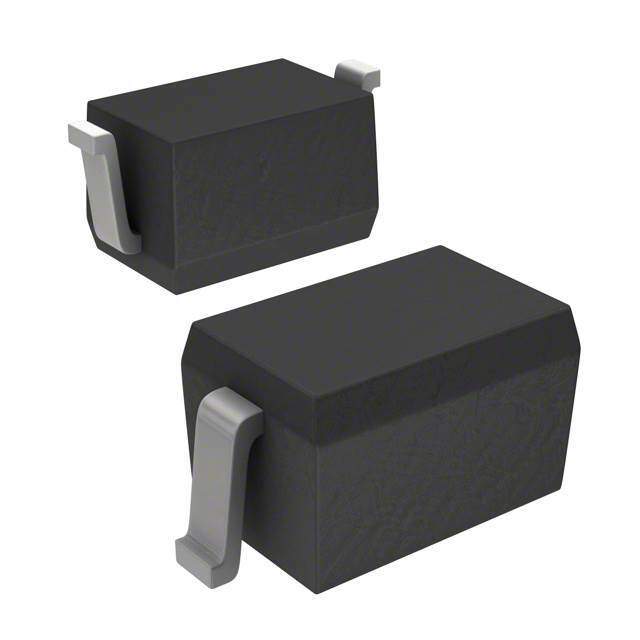

• Surface-Mount Package: The device comes in a compact SOD-123 flat package, which is ideal for space-constrained applications and is compatible with automatic pick-and-place equipment.
• Low Leakage Current: It exhibits a low leakage current characteristic, which minimizes power loss when the diode is in the reverse-biased state.
• High Junction Temperature: The BAT30JFILM can operate at a high junction temperature, providing reliability and stability across a wide range of operating conditions.

Applications

The versatility of the BAT30JFILM allows it to be used in a variety of applications, including:

• Switching power supplies
• Power management systems
• DC-DC converters
• Reverse polarity protection circuits
• Low-voltage, high-frequency inverters
• Free-wheeling diodes in power applications

Product Specifications

STMicroelectronics has equipped the BAT30JFILM with the following specifications:

• Repetitive Peak Reverse Voltage (V<sub>RRM): 30 V
• Average Forward Current (I<sub>F(AV)): 200 mA
• Non-Repetitive Peak Forward Surge Current (I<sub>FSM): 600 mA
• Operating Junction Temperature Range (T<sub>j): -40°C to +125°C
• Storage Temperature Range: -65°C to +150°C

With its robust design and superior electrical characteristics, the BAT30JFILM from STMicroelectronics stands out as a reliable choice for designers and engineers looking to enhance the performance and efficiency of their electronic designs.
