Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 50A
Voltage - Collector Emitter Breakdown (Maximum) 125V
Vce Saturation (Maximum) @ Ib, Ic 1.2V @ 5A, 50A
Current - Collector Cutoff (Maximum) 3mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 20 @ 25A, 2V
Power - Max 250W
Frequency - Transition 8MHz
Operating Temperature Range 200°C (TJ)
Mounting Chassis Mount
Package TO-204AA, TO-3
Manufacturer Package TO-3
Win Source Part Number 770691-BUV20
Popularity Medium
Supply and Demand Status Limited
Family Name BUV20
Introduction Date January 27, 2000
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BUV20 CAD Model

Description

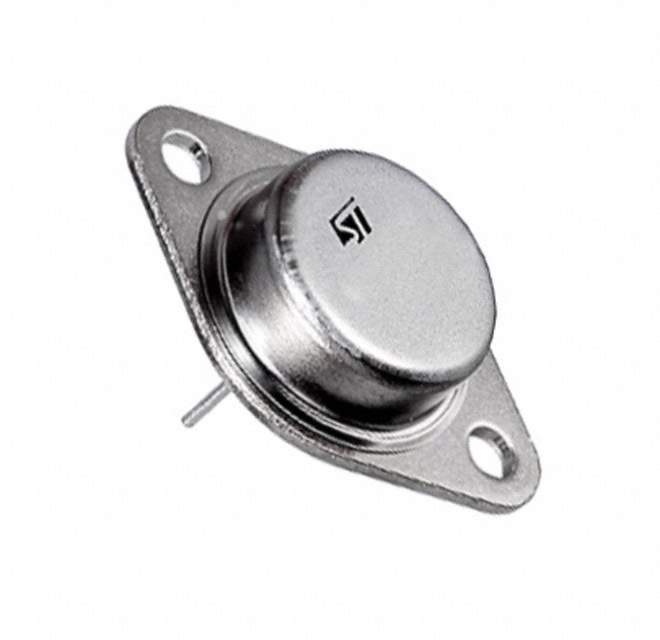

The BUV20 from STMicroelectronics is a high power, silicon NPN transistor designed for use in high-speed switching applications. This device is particularly suited for power amplification and high current switching, which is a common requirement in industrial and commercial electronics systems.

Key Features:

  • Voltage and Current: The BUV20 boasts a collector-emitter voltage (Vceo) of 800V, which allows for a wide range of operations in high voltage environments. Additionally, it supports a collector current (Ic) of up to 15A, making it capable of handling significant power loads.
  • Power Dissipation: With a power dissipation (Pc) of 150W, this transistor can manage considerable amounts of energy without compromising performance, which is crucial for reliability in power applications.
  • High Switching Speed: The BUV20 is designed for high-speed switching, which is essential for applications requiring fast response times and high-frequency operation.
  • Robustness: Its rugged design ensures reliability under harsh conditions, making it suitable for demanding industrial applications.

Applications:

The BUV20 is widely used in a variety of applications, including:

  • Switching regulators
  • Inverters
  • Motor control systems
  • Power amplifiers
  • High power switching circuits

Package and Quality:

Encased in a TO-3 metal package, the BUV20 ensures excellent thermal conduction and robustness. STMicroelectronics is committed to delivering high-quality products. The BUV20 is manufactured to meet the stringent quality standards required for industrial and consumer electronic devices.

Conclusion:

The BUV20 from STMicroelectronics is an ideal choice for designers looking for a high power NPN transistor that offers high-voltage operation, substantial current handling, and fast switching speeds. Its ability to perform reliably in tough conditions makes it a go-to component for power regulation and conversion applications in a wide array of industries.
