Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 850mV @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 25μA @ 200V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole

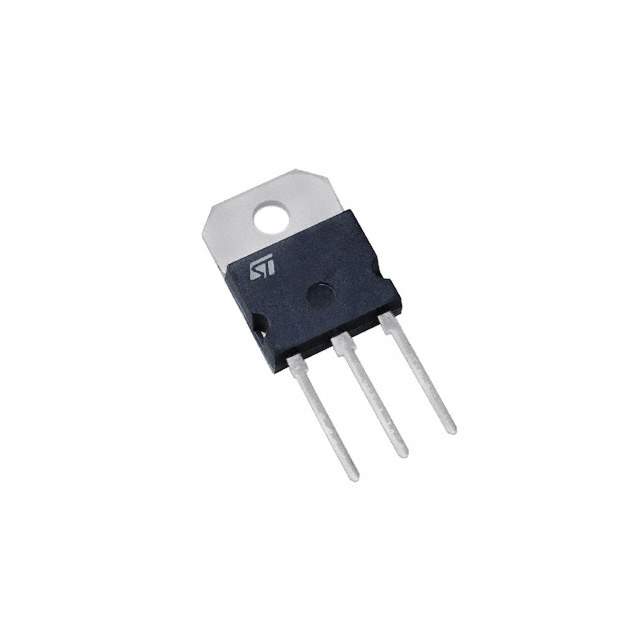

Case / Package SOT-93
Win Source Part Number 201727-BYV52-200
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BYV52-200 CAD Model

Description

The BYV52-200, manufactured by STMicroelectronics, is a robust dual diode module designed for high efficiency and reliability in a wide array of applications. This component is particularly well-suited for use in switching power supplies, inverters, and as freewheeling diodes in motor control circuits, providing users with a versatile solution for their power management needs.

Key Features

  • High Reverse Voltage Capability: The BYV52-200 is designed to withstand reverse voltages up to 200V, making it suitable for high-voltage applications.
  • Fast Switching Speed: With its fast recovery time, this dual diode module ensures minimal power loss and improved efficiency in fast-switching applications.
  • Low Forward Voltage Drop: A low forward voltage drop reduces power dissipation and enhances the overall efficiency of the system.
  • Isolated Mounting Base: The module features an electrically isolated mounting base rated at 2500V RMS, which simplifies the design and enhances safety by eliminating the need for additional insulation.
  • High Surge Current Capability: The BYV52-200 can handle high surge currents, making it robust against transient events and suitable for rugged environments.

Applications

The BYV52-200 is a versatile component that can be deployed in various power management applications. Its high reverse voltage and fast switching capabilities make it an excellent choice for:

  • Switching power supplies
  • Motor control circuits
  • Inverters
  • Power factor correction circuits
  • Freewheeling diodes in a range of electronic devices

Product Benefits

Integrating the BYV52-200 into your designs offers several benefits, including improved system reliability and longevity due to its robust construction. The dual diode's high efficiency minimizes thermal stress, resulting in a longer operational life for your applications. Additionally, the module's compact size and isolated mounting base facilitate easy installation and can help reduce overall system size and cost.

Conclusion

The BYV52-200 from STMicroelectronics is a high-performance dual diode module that offers a combination of speed, efficiency, and reliability for modern power management solutions. Its comprehensive feature set and robust design make it an ideal choice for engineers looking to enhance the performance and durability of their power applications.
