The ECMF4-2450A17M10 from STMicroelectronics is a state-of-the-art integrated common mode filter with ESD protection, designed to suppress EMI/RFI common mode noise on high-speed differential serial buses. This component is a perfect fit for applications that require data line protection and noise reduction, such as USB 2.0, HDMI, and LVDS interfaces.

Key Features

• High Integration: Combines a common mode filter and ESD protection in a single package, reducing PCB space requirements and simplifying design.
• Superior ESD Protection: Offers very high ESD protection levels, up to 15 kV (air discharge) and 8 kV (contact discharge) based on the IEC61000-4-2 standard, ensuring the safety and longevity of your end product.
• High Cut-off Frequency: Features a high differential bandwidth with a cut-off frequency of 2450 MHz, ensuring signal integrity for high-speed interfaces without compromising data rates.
• Low Insertion Loss: Minimizes signal attenuation thanks to its low insertion loss, preserving signal strength and quality over longer distances.
• Large Differential Mode Bandwidth: Supports high-speed data transmission with a large differential mode bandwidth, making it ideal for fast communication protocols.

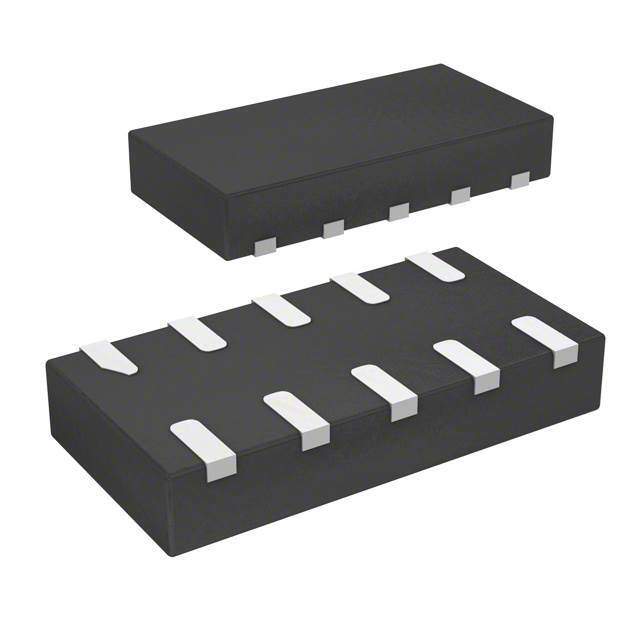

• Compact Footprint: The ECMF4-2450A17M10 comes in a compact 1.7mm x 1.0mm package, which is highly suited for space-constrained applications.

Applications

The ECMF4-2450A17M10 is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Smartphones, Tablets, and Portable Devices
• High-speed Data Lines for USB 2.0 Interfaces
• Consumer Electronics with HDMI Ports
• Display Interfaces like LVDS
• Any Application Requiring Protection and Noise Suppression for Differential Data Lines

With its combination of high-speed data line protection and noise suppression capabilities, the ECMF4-2450A17M10 from STMicroelectronics represents a robust solution for designers looking to enhance the performance and reliability of their digital interface applications.
