Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.8V
Power Dissipation - Pd 150W
Applications General Purpose
Capacitance @ Frequency 26pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

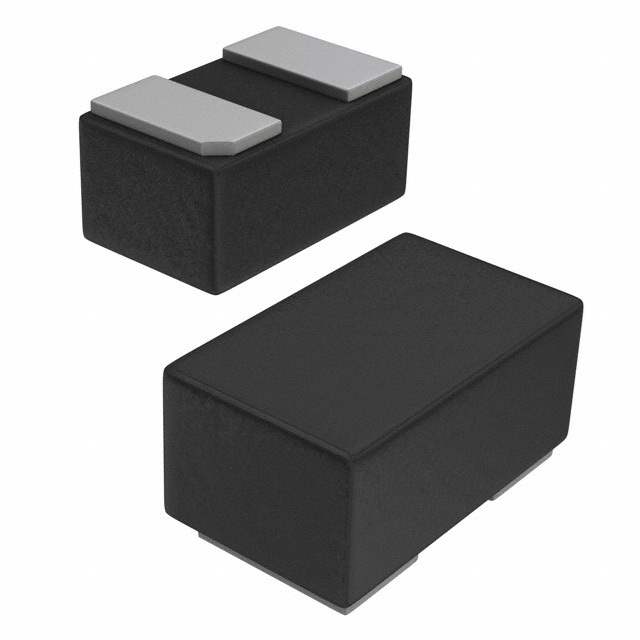

Case / Package SOD-882
Win Source Part Number 015722-ESDALC5-1BM2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESDALC5-1BM2 CAD Model

Description

ESDALC5-1BM2 Transient Voltage Suppressor by STMicroelectronics

The ESDALC5-1BM2 is a state-of-the-art transient voltage suppressor designed by STMicroelectronics to protect sensitive electronic equipment from electrostatic discharges (ESD) and other voltage-induced transients. This device is tailored to safeguard high-speed data lines and other applications where low capacitance and high protection levels are required.

Key Features

  • Low Clamping Voltage: The device offers an extremely low clamping voltage, ensuring that sensitive components are well-protected from the damaging effects of transient overvoltage events.
  • Low Capacitance: With a capacitance of just a few picofarads, the ESDALC5-1BM2 is ideal for protecting high-speed signal lines without significantly affecting signal integrity.
  • High ESD Protection: It is capable of withstanding ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge), as per the IEC 61000-4-2 standard, providing robust protection for your electronic devices.
  • Single Line Protection: This device is designed to protect one data or power line, offering a focused and efficient approach to transient voltage suppression.
  • SOT-23-3L Package: Enclosed in a small SOT-23-3L package, the ESDALC5-1BM2 is suitable for use in space-constrained applications, allowing for a more compact overall design.
  • RoHS Compliant: Adhering to environmental standards, this product is RoHS compliant, making it a responsible choice for eco-friendly electronics design.

Applications

The ESDALC5-1BM2 is versatile and can be used in a variety of applications, including:

  • USB 2.0, 3.0, and 3.1 interfaces
  • HDMI, DisplayPort, and other high-speed data interfaces
  • Smartphones, tablets, and other portable devices
  • Industrial controls and automotive applications
  • Other sensitive electronic circuits requiring ESD protection

In summary, the ESDALC5-1BM2 from STMicroelectronics is a highly effective solution for protecting electronic circuits from the perils of electrostatic discharge and other transient voltage events. Its low capacitance, strong ESD protection, and compact form factor make it an excellent choice for designers looking to enhance the durability and reliability of their high-speed digital systems.
