Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 350mA
Outputs and Type 1, Isolated
Voltage - Output 12V
Voltage - Input 185 ~ 265 VAC
Supplied Contents Board(s)
Utilized IC / Part HVLED805
Base Product Number EVALHVLED805
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1341645-EVALHVLED805
Ultra Librarian 3D Model Ultra Librarian EVALHVLED805 CAD Model

Description

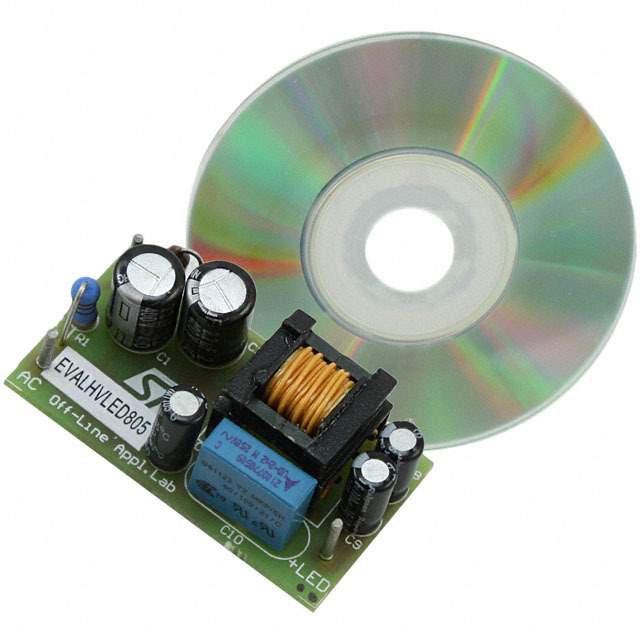

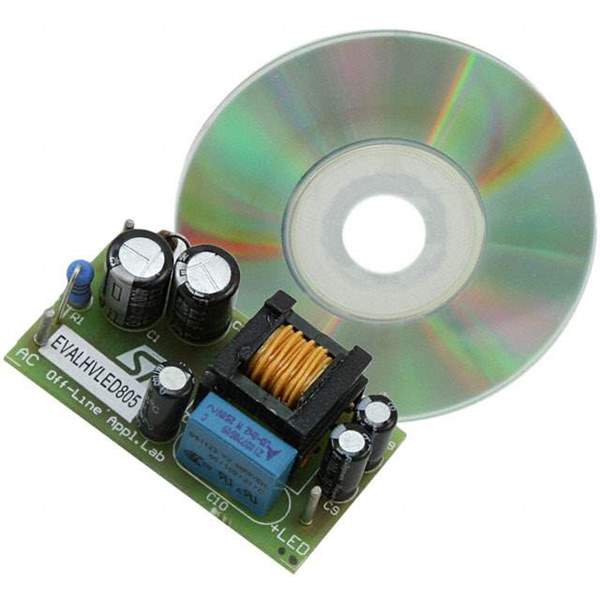

EVALHVLED805 High-Power LED Driver Evaluation Board

The EVALHVLED805 from STMicroelectronics is a state-of-the-art evaluation board designed for professionals and enthusiasts looking to test or develop high-power LED lighting solutions. This evaluation platform is centered around the HVLED805, a high-performance offline controller for LED lighting with constant voltage primary-sensing. The HVLED805 is known for its robustness and efficiency in driving LED arrays and is particularly suited for applications such as LED street lighting, architectural lighting, and high-brightness indoor lighting.

The EVALHVLED805 board is engineered to facilitate the evaluation of the HVLED805's capabilities, including its quasi-resonant zero-voltage switching (ZVS) topology, which significantly enhances energy efficiency by minimizing switching losses. The board supports a wide range of input voltages from 90V to 264V AC, making it versatile for testing in various geographical regions with different power standards.

With its advanced features, the EVALHVLED805 provides excellent power factor correction (PFC) and precise constant current (CC) output, ensuring high-quality and consistent lighting performance. The board is also equipped with numerous protection features, such as overvoltage, overcurrent, and thermal shutdown, which safeguard the system and extend the lifespan of the LEDs.

For ease of use and flexibility, the EVALHVLED805 includes an adjustable output current setting, allowing users to customize the LED current to match the requirements of their specific lighting application. The board also comes with comprehensive documentation and hardware manuals, which guide users through the setup and operation of the evaluation board, as well as the implementation of the HVLED805 controller in their own designs.

In summary, the EVALHVLED805 evaluation board is an excellent tool for developers and engineers looking to explore the advanced features of the HVLED805 LED driver in a practical, user-friendly environment. Whether for prototyping or educational purposes, this evaluation board from STMicroelectronics is a valuable asset for pushing the boundaries of high-power LED lighting technology.
