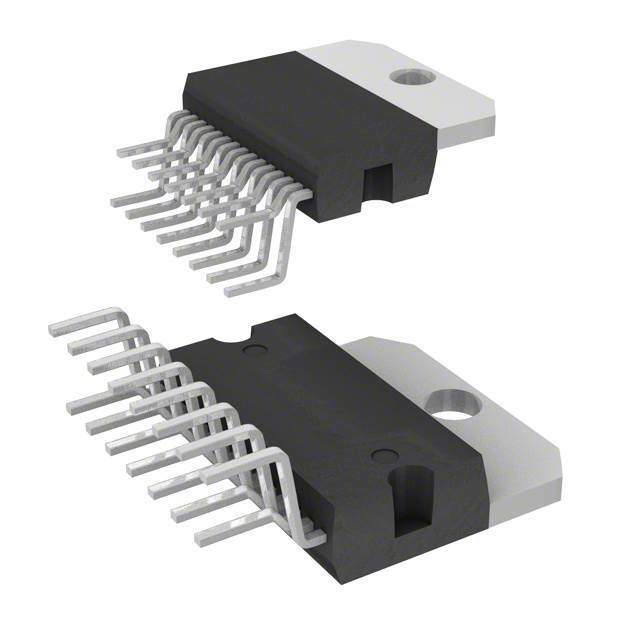

The L296 from STMicroelectronics is a high-current switching regulator designed to offer a compact and efficient solution for DC-DC conversion applications. This versatile regulator is capable of delivering up to 4A of output current with an output voltage range adjustable from 5.1V to 40V, making it an ideal choice for a wide variety of power supply designs.

Key Features

• Adjustable Output Voltage: The L296 allows for an output voltage that can be set from 5.1V to 40V, enabling it to cater to a broad range of applications.
• High Output Current: With the ability to supply up to 4A, this regulator can power components that require a substantial amount of current.
• Efficient Operation: The switching regulator design ensures high efficiency, which is crucial for reducing heat dissipation and improving system reliability.
• Thermal Shutdown: An integrated thermal shutdown feature protects the device from damage due to overheating, enhancing its durability.
• Current Limiting: Built-in current limiting safeguards the regulator and the load from overcurrent conditions.
• Inhibit Mode: The L296 can be switched off with an inhibit mode, allowing for reduced power consumption when the regulator is not needed.

Applications

The L296 is suitable for a diverse array of applications, including but not limited to:

• Switching regulators for microprocessors
• DC powered devices
• Battery chargers
• Peripheral drivers
• Step-down converters

Conclusion

The STMicroelectronics L296 is a robust and flexible high-current switching regulator that offers a combination of features making it a top choice for designers looking to implement a reliable power supply in their electronic projects. With its adjustable output voltage, high current capabilities, and protective features, the L296 stands out as a solid foundation for developing efficient and durable power management solutions.
