Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Applications DC Motors, Relays, Solenoids, Stepper Motors
Load Type Inductive
Technology Bipolar
Current - Peak Output 2A
Supply Voltage - Operating 4.5 V to 7 V
Voltage - Load 4.8 V to 46 V
Temperature Range - Operating -40°C to 150°C (TJ)
Fault Protection Current Limiting, Over Temperature
Mounting Through Hole

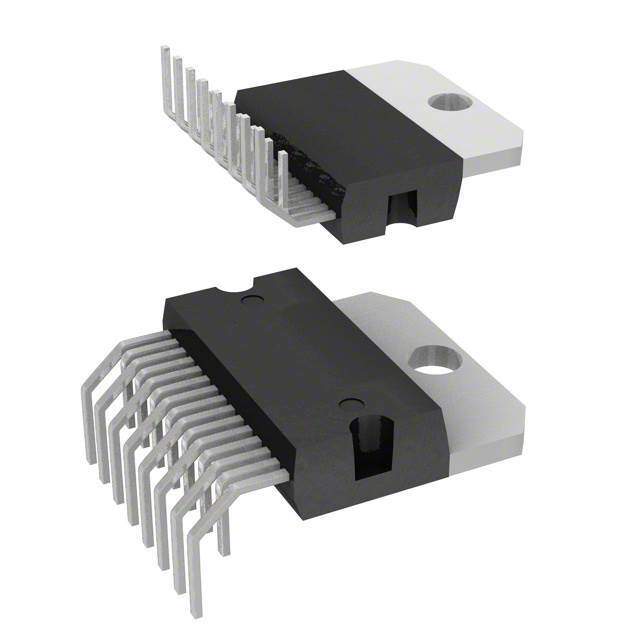

Case / Package 15-Multiwatt
Win Source Part Number 083404-L298HN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian L298HN CAD Model

Description

STMicroelectronics L298HN Overview

The L298HN is a high-power dual full-bridge driver designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This integrated circuit is engineered to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. It is a robust module that combines a high current capability with the efficiency of monolithic integration.

Key Features

  • High Voltage Capability: The L298HN can handle up to 46V, providing the flexibility to be used in a wide range of applications.
  • High Current Output: It is capable of delivering up to 2A per channel or 4A max (with proper heat sinking) to your motors.
  • Dual Full-Bridge Driver: Its dual full-bridge design allows for the control of two DC motors simultaneously in either direction.
  • Low Saturation Voltage: The device ensures low voltage drops and more efficient power usage.
  • Overtemperature Protection: An internal overtemperature protection circuitry safeguards the device from thermal overload, enhancing its reliability and longevity.
  • Cross-Conduction Protection: Logic to prevent simultaneous conduction of the power output transistors is included.
  • Multiple Control Modes: It can be controlled by digital microcontroller pins with simple GPIO logic signals.

Applications

The versatility of the L298HN makes it an ideal choice for a variety of applications, such as:

  • Robotics and automated machinery
  • Positioning and actuator driving
  • Factory automation systems
  • Control of various motors including DC and stepper types

Design Considerations

When designing with the L298HN, it is important to consider the thermal requirements and ensure proper heat dissipation. Implementing adequate heat sinking is crucial to handle the generated heat during high current operations. Additionally, ensuring that the logic supply voltage is compatible with your microcontroller will provide seamless integration into your system.

The L298HN from STMicroelectronics is more than just a motor driver; it's a reliable, high-performance solution that can drive the most challenging motor control applications.
