STMicroelectronics L6983C33QTR Power Management IC

The L6983C33QTR from STMicroelectronics is a highly efficient, compact, synchronous step-down DC/DC converter that is part of STMicroelectronics' extensive power management portfolio. This advanced power solution is designed to meet the stringent energy requirements of modern electronic applications, delivering a fixed output voltage of 3.3V with an input voltage range of 4V to 38V. Its versatility makes it suitable for a wide array of applications, from industrial systems to consumer electronics.

Key Features

• Output Voltage: Fixed at 3.3V, catering to common logic levels used in digital circuits.
• Input Voltage Range: 4V to 38V, allowing for flexibility in various power supply configurations.
• Output Current: Up to 3A, providing sufficient power for a wide range of devices.
• High Efficiency: Minimizes power loss during conversion, enhancing overall system performance and reliability.
• Adjustable Switching Frequency: From 200 kHz to 2.2 MHz, which can be synchronized with an external clock to reduce electromagnetic interference (EMI).
• Thermal Protection: Over-temperature protection ensures the device operates within safe temperature limits.
• Current Protection: Over-current and short-circuit protection to safeguard the IC and the load from damage.
• Soft-Start: Gradual increase in output voltage to prevent inrush current at startup.

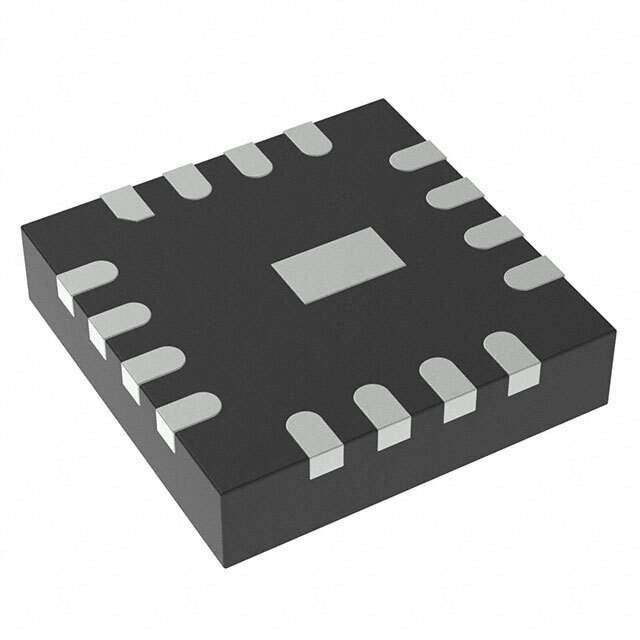

• Package: The device comes in a QFN-16 (3x3 mm) package which is ideal for space-constrained applications.

Applications

The L6983C33QTR is a highly adaptable component that can be utilized in various applications, including but not limited to:

• 5V and 12V bus converters
• Battery-powered equipment
• Industrial power supplies
• Microprocessor and FPGA power supplies
• Consumer electronics

With its robust feature set and flexible capabilities, the L6983C33QTR is an ideal solution for designers looking to enhance power efficiency and reliability in their next project.
