Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Applications Automotive
Operating Supply Current 7mA
Supply Voltage - Operating 7 V to 28 V
Temperature Range - Operating -40°C to 150°C
Mounting SMD (SMT)

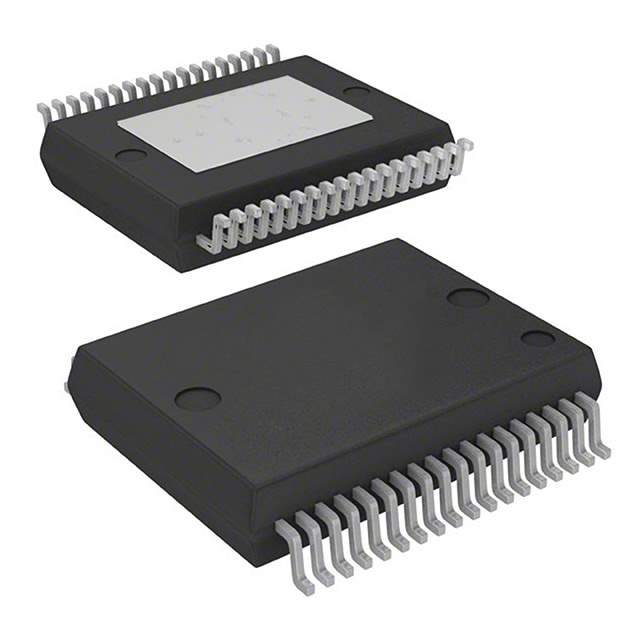

Case / Package PowerSSO-36
Win Source Part Number 136253-L9950XP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L9950XP CAD Model

Description

The L9950XP from STMicroelectronics is an advanced motor driver IC designed for automotive applications. This integrated circuit is specifically engineered to drive DC motors and stepper motors with outstanding precision and reliability. It is a perfect solution for automotive applications that require high-performance motor control such as power window lifts, seat adjustment, and HVAC blowers.

Key Features

  • Voltage Range: The L9950XP operates over a wide voltage range, making it suitable for various automotive power systems.
  • High Output Current: Capable of delivering high output current, it can easily drive motors that require substantial power.
  • Multiple Diagnostic Functions: Equipped with a host of diagnostic features, this IC can detect and report various fault conditions, ensuring safe and reliable operation.
  • Protection Mechanisms: It includes over-temperature protection, under-voltage lockout, and over-current protection, safeguarding the IC and the motor from potential damage.
  • Configurable Outputs: The outputs can be configured for different motor types, offering flexibility in application design.

Applications

The robust design and versatile functionality of the L9950XP make it an ideal choice for a variety of automotive applications, including:

  • Power window systems
  • Electric seat adjustment
  • HVAC blower motors
  • Automotive mirror adjustment

Design Support

STMicroelectronics provides comprehensive design support for the L9950XP, including detailed datasheets, application notes, and reference designs. This support helps designers and engineers to rapidly integrate the L9950XP into their projects, significantly reducing time-to-market.

Conclusion

The L9950XP from STMicroelectronics is a sophisticated motor driver IC that offers a blend of high performance, reliability, and diagnostic capabilities. Its wide voltage range and high output current make it a versatile choice for automotive motor control applications. With the added benefits of protection features and extensive design support, the L9950XP stands out as a superior solution for modern automotive systems.
