The LD39020ADTPU25R is a high-performance, low-dropout (LDO) voltage regulator from STMicroelectronics, designed to deliver a stable and precise voltage supply. This LDO is particularly suitable for sensitive electronic applications that require a steady and reliable power source.

Key Features

• Output Voltage: This device provides a fixed output voltage of 2.5V, which is ideal for powering a wide range of microcontrollers, sensors, and other digital ICs.
• High Accuracy: With a precise output voltage tolerance, the LD39020ADTPU25R ensures high accuracy in delivering the required voltage to the load.
• Low Dropout: The LDO's low dropout voltage allows it to operate efficiently even when the input voltage is very close to the output voltage, minimizing power loss and improving system efficiency.
• Current Capacity: It has an output current capacity of up to 200 mA, catering to moderate power requirements in electronic circuits.
• Thermal Protection: The device includes thermal shutdown protection, safeguarding it from damage that can be caused by excessive heat.
• Stability: It is designed for stability with low equivalent series resistance (ESR) ceramic capacitors, which are commonly used in modern electronic designs.

Applications

The LD39020ADTPU25R is versatile and can be used in a variety of applications, including:

• Portable devices
• Battery-powered equipment
• Microcontroller power supply
• Reference voltage circuits
• Consumer electronics

Package and Quality

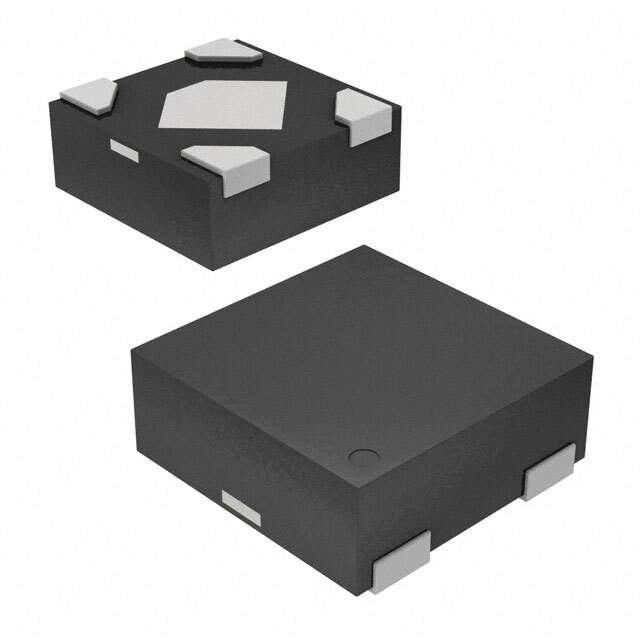

This LDO regulator comes in a compact DFN6 (1.2 x 1.3 mm) package, making it suitable for space-constrained applications. The LD39020ADTPU25R is also characterized by a high level of quality and reliability, as expected from STMicroelectronics, a leading semiconductor manufacturer.

Conclusion

With its combination of high performance, precision, and compact size, the STMicroelectronics LD39020ADTPU25R is an excellent choice for designers looking to improve the stability and efficiency of their power supply circuits.
