The LD39020DTPU30R is a high-performance, low drop voltage regulator designed by STMicroelectronics, a leader in semiconductor solutions. This voltage regulator is optimized for low power consumption and low voltage operations, making it an ideal choice for battery-powered applications and portable devices.

Key Features

• Output Voltage: The device provides a fixed output voltage of 3.0V, which is suitable for a variety of digital and analog circuits.
• High Accuracy: Ensures stable operation with a tight output voltage tolerance, which is crucial for sensitive electronic components.
• Low Dropout: The low dropout feature allows the regulator to operate efficiently even when the input voltage is close to the output voltage, thus preserving battery life.
• Current Capability: Capable of delivering up to 200 mA of continuous output current, it is well-suited for small-scale applications.
• Thermal Protection: Built-in thermal shutdown protection safeguards the device and the system from overheating and potential damage.
• Low Quiescent Current: The device's low quiescent current minimizes power consumption when in standby mode, which is critical for extending battery life in portable applications.

Applications

The LD39020DTPU30R is versatile and can be used in a wide array of applications, including:

• Mobile Phones
• Portable Media Players
• Wireless LAN
• GPS Systems
• Healthcare and Medical Devices

Package Information

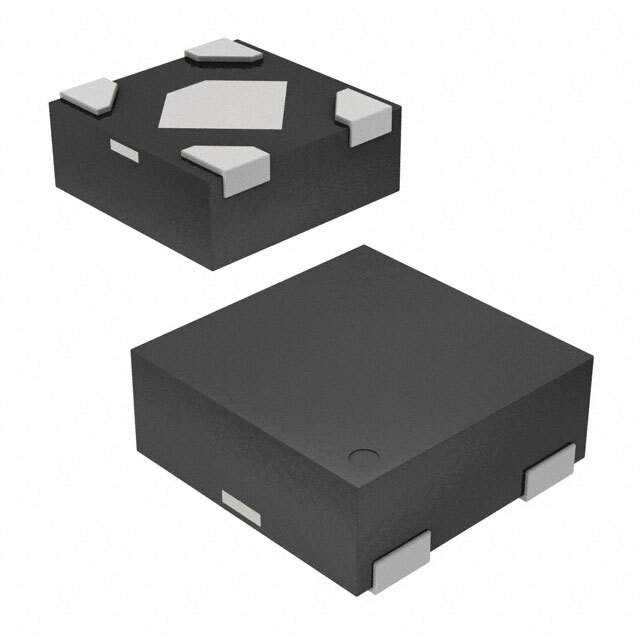

This low drop voltage regulator is available in a compact DFN6 (1.2x1.3) package, which is highly suitable for space-constrained applications. Its small footprint allows for efficient use of PCB space without compromising performance.

Conclusion

With its combination of features, the LD39020DTPU30R from STMicroelectronics stands out as a reliable and efficient solution for applications requiring stable voltage regulation with minimal power loss. Whether it's for personal electronics or medical devices, this voltage regulator ensures consistent performance and longevity of your application.
