Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series Automotive, AEC-Q100 MPC57xx
Package Tray
Core Processor e200z2, e200z4, e200z4
Core Size 32-Bit Tri-Core
Speed 80MHz/160MHz
Connectivity CANbus, Ethernet, FlexRay, I²C, LINbus, SPI, UART/USART
Peripherals DMA, LVD, POR, Zipwire
Program Memory Size 2.5MB (2.5M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
RAM Size 64K x 8
Supply Voltage - Operating 3V ~ 5.5V
Data Converters A/D 12b SAR, 16b Sigma-Delta
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)

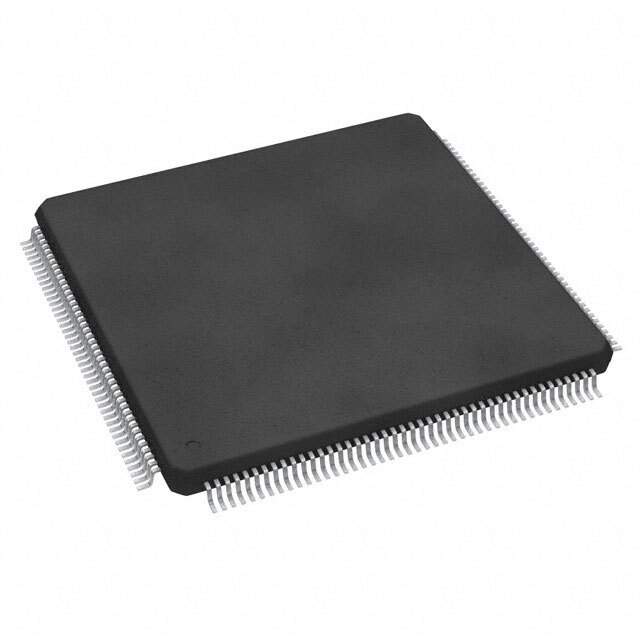

Package / Case 176-LQFP Exposed Pad
Supplier Device Package 176-eLQFP (24x24)
Base Product Number SPC574
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 500
Win Source Part Number 1095591-SPC574K72E7C6FAR
Ultra Librarian 3D Model Ultra Librarian SPC574K72E7C6FAR CAD Model

Description

The SPC574K72E7C6FAR is a state-of-the-art microcontroller unit (MCU) from STMicroelectronics, designed to cater to the demanding needs of automotive and industrial applications. This powerful MCU is part of the SPC57 K Line, which is renowned for its high performance, reliability, and advanced features. The SPC574K72E7C6FAR is built on Power Architecture® technology, ensuring robust processing capabilities and efficient power management.

Key Features

  • Core: The MCU features a 32-bit Power Architecture® e200z4d dual-core processor, providing exceptional computational speed and multitasking abilities. Each core operates at up to 120 MHz, delivering the performance needed for complex automotive applications.
  • Memory: It comes equipped with 1.5 MB of flash memory and 128 KB of RAM, offering ample space for program storage and smooth execution of applications.
  • Temperature Range: The device operates over a wide temperature range from -40°C to 125°C, suitable for harsh environmental conditions.
  • Package: The SPC574K72E7C6FAR is available in a LQFP144 package, which is ideal for space-constrained applications while providing sufficient I/O ports for comprehensive peripheral connectivity.
  • Connectivity: With multiple communication interfaces, including CAN, LIN, and Ethernet, this MCU ensures versatile connectivity options for various automotive communication protocols.
  • Safety: Designed with safety in mind, the SPC574K72E7C6FAR incorporates features that enable it to meet the stringent requirements of the automotive safety integrity level (ASIL-D).
  • Development Support: STMicroelectronics provides a comprehensive development ecosystem, including software tools, libraries, and evaluation boards, to facilitate the development process and reduce time to market.

Applications

The SPC574K72E7C6FAR is ideally suited for a range of applications in the automotive sector, including engine management systems, transmission control units, advanced driver-assistance systems (ADAS), body control modules, and gateways. Its robust design also makes it a perfect choice for industrial automation, motor control, and other applications that require high reliability and performance.

In conclusion, the SPC574K72E7C6FAR from STMicroelectronics is a top-tier microcontroller that delivers exceptional performance, comprehensive features, and the reliability needed for the most demanding automotive and industrial applications.
