Products specifications Report Issue?

Manufacturer STMicroelectronics
Packaging Reel
Part Status Obsolete (End Of Life)
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3V
Maximum Input Voltage 5.5V
Voltage - Output (Min/Fixed) 0.8V
Maximum Output Voltage 4.79V
Current - Output 1.5A
Frequency - Switching 1.5MHz
Synchronous Rectifier No
Temperature Range - Operating 0°C ~ 125°C
Mounting Style SMD

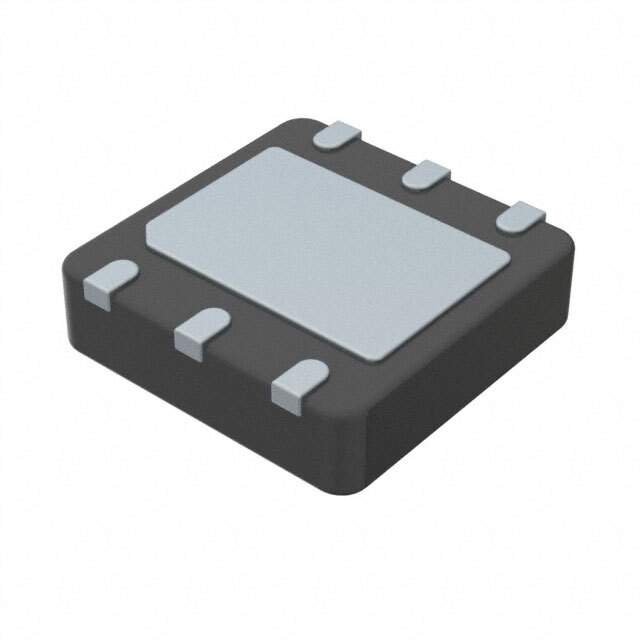

Manufacturer Package 6-VDFN Exposed Pad
Supplier Device Package 6-DFN (3x3)
Part Number Series ST1S03
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804492-ST1S03APUR
Ultra Librarian 3D Model Ultra Librarian ST1S03APUR CAD Model

Description

The ST1S03APUR is a highly efficient, synchronous step-down DC-DC converter produced by STMicroelectronics, a leader in the semiconductor industry. This voltage regulator is designed to deliver a fixed output voltage with a high level of accuracy while maintaining stability and performance across a range of input voltages and load conditions.

Key Features

  • Output Voltage: The ST1S03APUR provides a fixed output voltage that is ideal for powering sensitive electronic components that require a stable power supply.
  • High Efficiency: Its synchronous rectification design ensures high efficiency, which is crucial for battery-powered applications where power conservation is a priority.
  • Adjustable Output: While the device offers a fixed output, it also provides the flexibility to adjust the voltage to meet specific requirements through external components.
  • Low RDS(on) Switches: The inclusion of low RDS(on) switches minimizes the voltage drop across the switch, thereby reducing power loss and improving overall efficiency.
  • Thermal Protection: The ST1S03APUR is equipped with thermal shutdown protection to prevent damage from overheating, ensuring reliable operation under various conditions.

Applications

The versatility of the ST1S03APUR makes it suitable for a wide range of applications. It is particularly well-suited for portable devices, where power efficiency is paramount. These include:

  • Mobile phones and smartphones
  • Digital cameras and portable media players
  • Wireless LAN and networking devices
  • GPS receivers

Package and Availability

The ST1S03APUR is available in a compact QFN-16 (3x3mm) package, making it an excellent choice for space-constrained applications. The small footprint allows for integration into compact PCB layouts without sacrificing performance or efficiency.

Conclusion

With its robust feature set and high efficiency, the ST1S03APUR from STMicroelectronics stands out as a reliable and versatile voltage regulator suitable for a variety of applications. Its thermal protection, adjustable output, and low RDS(on) switches make it an ideal choice for designers looking to optimize power management in their next project.
