Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 31nC @ 5V
Max Input Capacitance 1600pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 70W (Tc)
Maximum Rds On at Id,Vgs 28 mOhm @ 18A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D-Pak
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 031131-STD30NF06LT4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name STD30NF06L
Introduction Date September 12, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian STD30NF06LT4 CAD Model

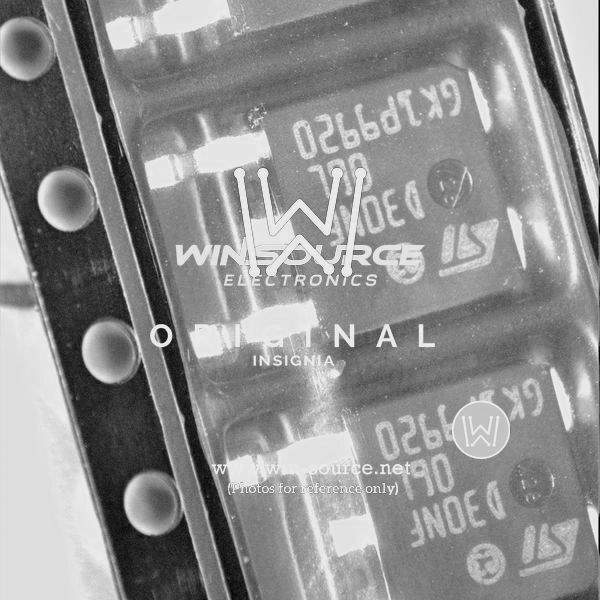

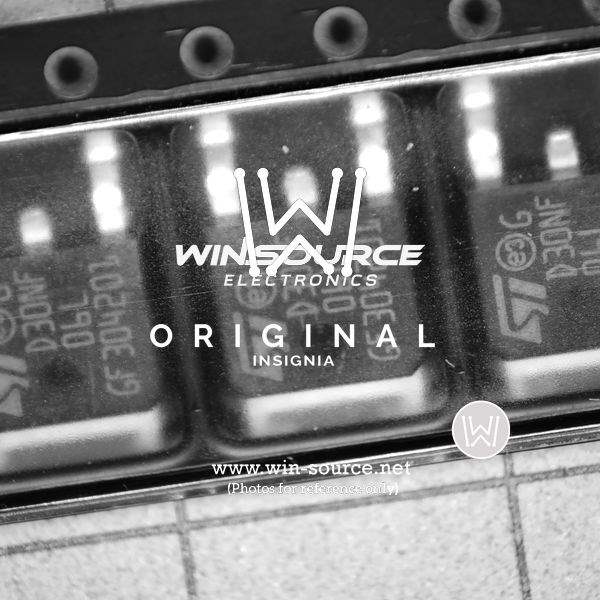

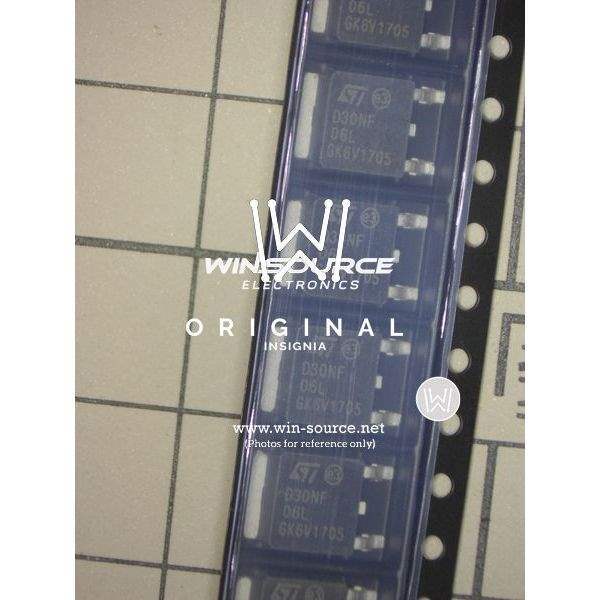

Description

STD30NF06LT4 - N-Channel 60V - 0.036ohm - 30A - DPAK STripFET™ II Power MOSFET

The STD30NF06LT4 is a high-performance N-channel Power MOSFET brought to you by STMicroelectronics, a leader in semiconductor solutions. This device is part of the STripFET™ II series, designed to offer both low on-resistance and low gate charge, making it ideal for a wide range of power management applications. It is especially suitable for high-efficiency power supplies, motor control circuits, and automotive applications.

The STD30NF06LT4 operates at 60V, making it robust enough for most intermediate voltage applications. Its low threshold voltage ensures that it can be driven by low-voltage control signals, enhancing its applicability in various circuit designs. With an impressively low on-resistance of just 0.036 ohms, this MOSFET ensures minimal power loss during operation, leading to an overall increase in the energy efficiency of your system.

This MOSFET can handle continuous currents up to 30A, allowing for substantial power handling capability. Additionally, the device's DPAK (TO-252) package is not only compact but also offers excellent thermal performance, ensuring the MOSFET runs cooler even under high current conditions. The package is designed for surface mounting, which makes it easy to integrate into PCB designs and suitable for automated assembly processes.

The STD30NF06LT4 is also characterized by fast switching performance, which is a critical attribute for applications such as DC-DC converters and switch-mode power supplies. Its low gate charge further enhances this performance, allowing for faster switching speeds without a significant increase in power consumption.

STMicroelectronics has designed the STD30NF06LT4 with reliability in mind. It features advanced avalanche and dynamic dv/dt ratings, providing robustness against harsh operating conditions. This makes the MOSFET an excellent choice for applications that require a high level of reliability and durability.

Whether you are designing power management systems for consumer electronics, automotive applications, or industrial equipment, the STD30NF06LT4 from STMicroelectronics offers the performance, efficiency, and reliability needed to create a superior end product.
