Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Series Sound Terminal
Part Status Active
Amplifier Type Class D
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 20W x 2 @ 8 Ohm
Voltage - Supply 5 V ~ 26 V
Board Type Fully Populated
Utilized IC / Part STA335ML
Supplied Contents Board(s)
Win Source Part Number STEVAL-CCA049V1-344338
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian STEVAL-CCA049V1 CAD Model

Description

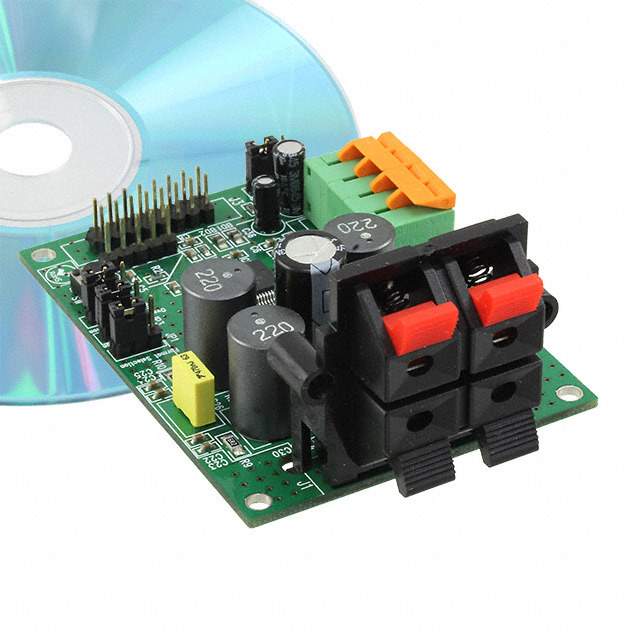

STEVAL-CCA049V1 - Audio Evaluation Board from STMicroelectronics

The STEVAL-CCA049V1 is an advanced audio evaluation board designed by STMicroelectronics to showcase the capabilities of the TDA7498E dual BTL class-D audio amplifier, which is a high-performance component suitable for a wide range of audio applications. This evaluation board is an excellent tool for developers and audio enthusiasts looking to explore the features and performance of the TDA7498E amplifier in a practical setting.

Featuring a power range that can deliver up to 160 watts per channel into an 8-ohm load, the TDA7498E amplifier on the STEVAL-CCA049V1 is well-suited for high-power audio systems such as home theater systems, active speakers, and soundbars. Its high efficiency and advanced design minimize the need for heat sinks, making it an ideal solution for compact and energy-efficient audio applications.

The evaluation board includes a range of input options, allowing users to feed audio signals through various sources. It is equipped with differential input stages that are designed to reject common-mode noise, ensuring a clean and high-quality audio output. Additionally, the board provides flexible power supply options and includes a standby feature to conserve energy when not in use.

The STEVAL-CCA049V1 also incorporates a range of protection features to ensure safe and reliable operation. These include short-circuit protection, thermal overload protection, and a clip detector, which helps to prevent damage to the amplifier and connected speakers under adverse conditions.

With its user-friendly layout, the evaluation board allows for easy access to the TDA7498E's adjustable settings, including gain selection, mute, and standby functions. This facilitates quick and easy experimentation and tuning to achieve the desired audio performance. The board is also designed with high-quality components and a robust PCB layout to maintain signal integrity and audio fidelity.

Overall, the STEVAL-CCA049V1 is an excellent platform for audio designers and hobbyists looking to evaluate the TDA7498E amplifier's performance and integrate it into high-powered audio solutions.
