Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 350mA, 700mA, or 1.05A
Outputs and Type 1, Isolated
Voltage - Output 32V
Voltage - Input 90 ~ 264 VAC
Supplied Contents Board(s)
Utilized IC / Part VIPer22A-E
Other Names 1026-STEVAL-ILL006V1,1805-STEVAL-ILL006V1,STEVALILL006V1,-497-5073,497-5073
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1283833-STEVAL-ILL006V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL006V1 CAD Model

Description

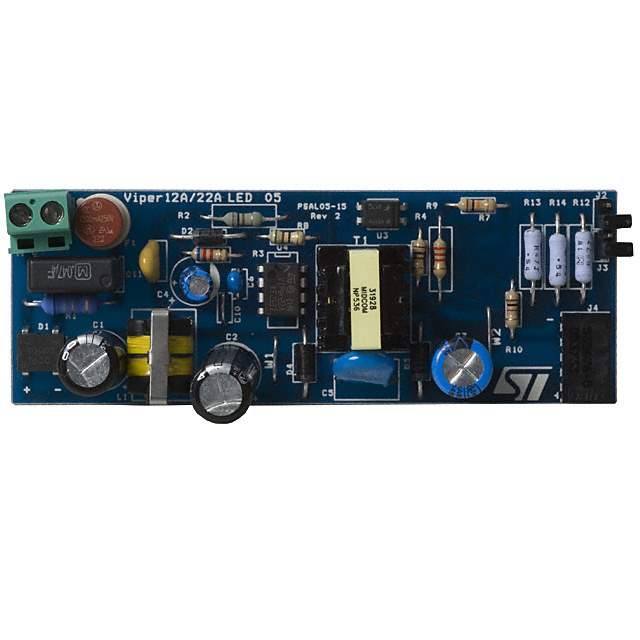

STEVAL-ILL006V1 - LED Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL006V1 is an advanced evaluation board created by STMicroelectronics, designed specifically for LED lighting applications. This product showcases the capabilities of the L6562A, a state-of-the-art PFC (Power Factor Correction) controller, and the L6561, a high-performance LED driver. It serves as an exemplary model for those interested in developing energy-efficient and high-performing LED lighting solutions.

Key Features:

  • Efficient Power Conversion: The board integrates the L6562A controller to ensure that power conversion is not only efficient but also meets the regulatory requirements for power factor correction.
  • High-Performance LED Driving: With the L6561 driver, the STEVAL-ILL006V1 provides a constant current output, which is crucial for maintaining consistent brightness and maximizing the lifespan of LEDs.
  • Dimming Capability: The evaluation board supports dimming functionality, allowing for adjustable light intensity which is essential for various lighting applications and energy savings.
  • Thermal Protection: It includes features to protect against overheating, ensuring the longevity of the board and connected LEDs.
  • Compact Design: The STEVAL-ILL006V1 is designed with a compact form factor, making it suitable for a wide range of lighting fixtures.

Applications:

The evaluation board is ideal for a variety of LED lighting applications, including:

  • Residential and commercial lighting
  • Street lighting
  • Architectural lighting
  • Emergency lighting
  • Industrial lighting systems

Benefits:

Utilizing the STEVAL-ILL006V1 provides numerous benefits for developers and engineers:

  • It accelerates the development process by providing a ready-to-use platform to test and validate LED driver designs.
  • The board is a tangible example of how to implement PFC and LED driving solutions using STMicroelectronics components.
  • It offers a flexible and scalable solution that can be adapted to different power levels and lighting requirements.

Overall, the STEVAL-ILL006V1 evaluation board is an invaluable tool for those looking to create efficient, reliable, and high-quality LED lighting systems. With the backing of STMicroelectronics' expertise in power management and LED driving technology, this board stands as a testament to the company's commitment to innovation and excellence in the field of lighting.
