Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 1.5A
Outputs and Type 1, Non-Isolated
Voltage - Output 2.7V ~ 5.5V
Features Camera Flash, I²C, and USB Interface
Voltage - Input 2.7V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part STCF06
Other Names STEVALTLL006V2,497-12068,-497-12068
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3B992
HTSUS 8473.30.1180
Win Source Part Number 1283839-STEVAL-TLL006V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL006V2 CAD Model

Description

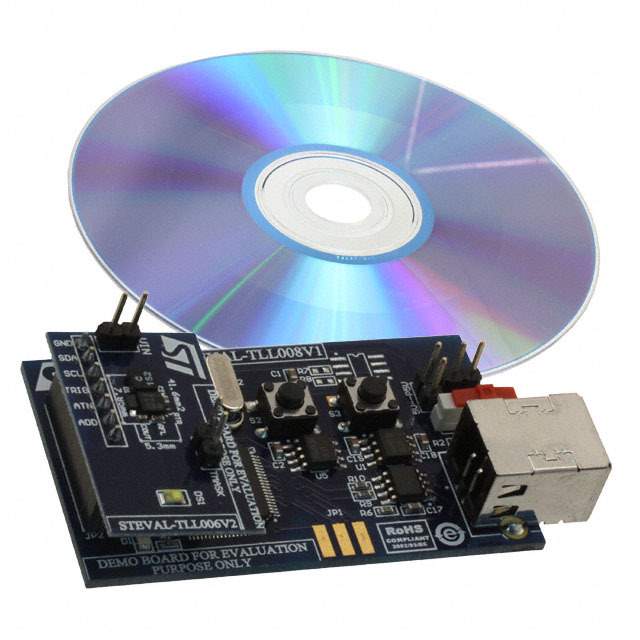

Introducing the STEVAL-TLL006V2 from STMicroelectronics

The STEVAL-TLL006V2 is a state-of-the-art evaluation board designed by STMicroelectronics, a global semiconductor leader known for its innovative approach to electronics. This evaluation board is specifically crafted for those who wish to explore the capabilities and performance of STMicroelectronics' advanced LED array drivers in real-world lighting applications.

At the heart of the STEVAL-TLL006V2 lies the LED6001 chip, a highly efficient, monolithic, step-down, current-controlled LED driver operating in continuous conduction mode (CCM). This chip is capable of providing up to 3 A of output current, which ensures that it can drive a wide range of high-power LEDs with consistent brightness and reliability.

The board is designed to be user-friendly and is equipped with a variety of features that make it an ideal platform for both professionals and hobbyists. The adjustable output current and dimming control allow for precise management of the lighting effects, while the input voltage range of 6.5 V to 48 V offers flexibility in terms of power supply selection.

One of the key advantages of the STEVAL-TLL006V2 is its thermal management capabilities. The board includes an over-temperature protection feature that guards against excessive heat, ensuring the longevity of both the LED driver and the LEDs themselves. Additionally, the evaluation board is equipped with under-voltage lockout (UVLO), over-voltage protection (OVP), and short-circuit protection, which contribute to the overall safety and stability of the lighting system.

The STEVAL-TLL006V2 also supports both analog and PWM dimming methods. This versatility allows designers to create a variety of lighting scenarios, from subtle ambient lighting to intense illumination, all while maintaining high efficiency and low power consumption.

With its robust design and comprehensive set of features, the STEVAL-TLL006V2 evaluation board is an excellent tool for developing advanced lighting solutions. Whether it's for commercial, industrial, or residential applications, this evaluation board from STMicroelectronics provides a reliable and flexible platform for innovating with LED technologies.
