Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Type Power Management
Function Battery Charger
Embedded No
Utilized IC / Part VIPer12AS, TSM101
Primary Attributes 3.5W, 0 ~ 7V @ 500mA Out, Off-Line
Supplied Contents Board(s)
Secondary Attributes 88~264 VAC
Other Names -497-5519,STEVALISA020V1,497-5519
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1284522-STEVAL-ISA020V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA020V1 CAD Model

Description

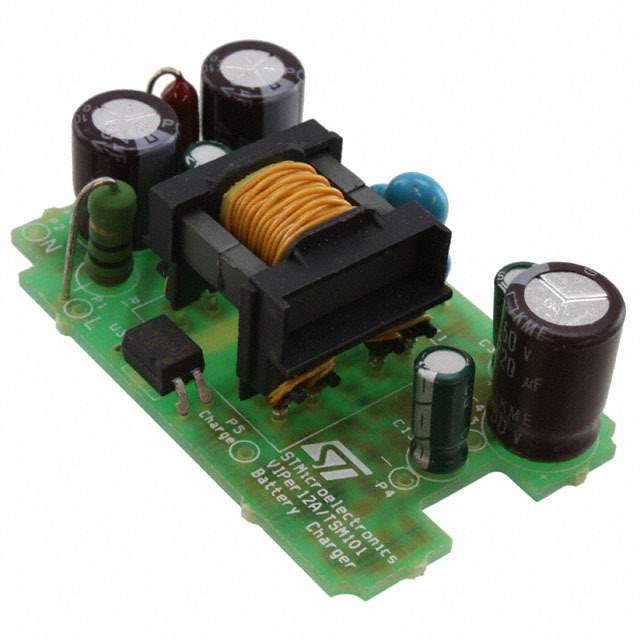

The STEVAL-ISA020V1 from STMicroelectronics is a highly efficient, fully integrated power supply module designed for a wide range of applications. This product is part of ST's portfolio of evaluation boards, which are intended to demonstrate the capabilities and facilitate the development of solutions using ST components.

Key Features

  • Based on the VIPER26 high voltage converter IC.
  • Wide input voltage range, suitable for various AC mains worldwide.
  • Output voltage of 12 V DC, with up to 2 W of output power.
  • 150 kHz fixed-frequency internal oscillator.
  • Low standby power consumption, making it suitable for energy-saving applications.
  • Integrated protections: Overload protection, short-circuit protection, and thermal shutdown.
  • Meets EMC standards for home appliances (EN55022, EN55014).
  • RoHS compliant and designed to meet CoC V5 Tier 2 and EuP Lot 6 standby requirements.

Applications

The STEVAL-ISA020V1 is ideal for a variety of applications that require a reliable and efficient power supply. These include:

  • Home appliances and white goods.
  • Set-top boxes and digital TV power supplies.
  • Auxiliary power supplies for industrial systems.
  • Smart metering and IoT devices.

Design and Development Support

The evaluation board comes with comprehensive technical documentation to assist designers in understanding the product's features and operation. This includes schematics, bill of materials, PCB layout, and application notes. Additionally, STMicroelectronics offers support through their online design communities and technical support services to help accelerate development processes.

Quality and Reliability

STMicroelectronics is renowned for their commitment to quality and reliability. The STEVAL-ISA020V1 is built with this commitment in mind, ensuring a robust design that can withstand the demands of daily operation in a wide range of environmental conditions.
