Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Part Status Obsolete(EOL)
Main Purpose AC/DC, Primary Side
Outputs and Type 2, Isolated
Power - Output 100W
Voltage - Output 24V, 3.3V or 5V
Output Current 4A, 1A
Voltage - Input 180 ~ 265 VAC, 320 ~ 480 VAC
Regulator Topology Flyback
Frequency - Switching 250kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L5970, STW9N150, UC3844B
Win Source Part Number 763420-STEVAL-ISA054V1
Popularity Medium
Supply and Demand Status Balance
Family Name STEVAL-ISA054V1
Introduction Date April 01, 2009
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA054V1 CAD Model

Description

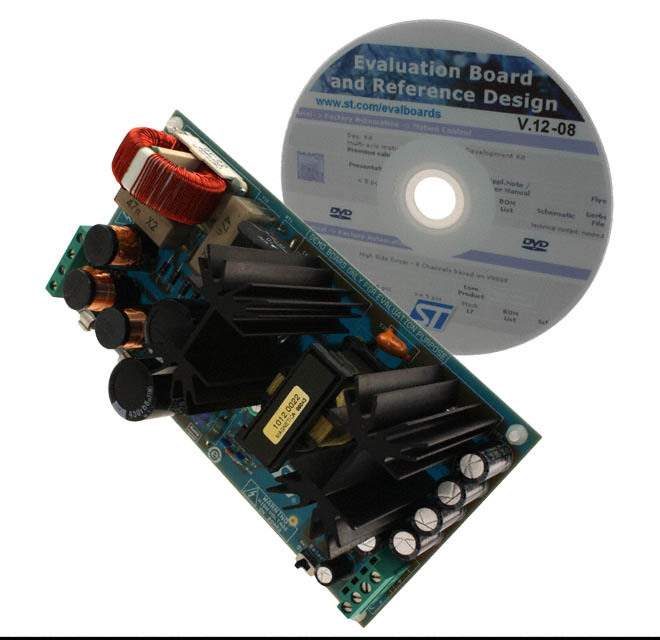

The STEVAL-ISA054V1 from STMicroelectronics is an advanced and highly integrated power management evaluation board designed for a wide range of applications. This evaluation board is centered around a synchronous step-down switching regulator that is optimized for high efficiency and flexibility in various power supply scenarios.

Key Features

  • High-Efficiency Synchronous Step-Down Regulator: The core of this evaluation board is capable of delivering high efficiency across a wide range of load conditions, making it suitable for energy-sensitive applications.
  • Adjustable Output Voltage: Users can configure the output voltage to meet the specific requirements of their application, ensuring compatibility with various devices and systems.
  • Wide Input Voltage Range: The board supports a broad input voltage range, accommodating various power sources and enabling its use in multiple environments.
  • Thermal Protection: The STEVAL-ISA054V1 includes features to protect against overheating, safeguarding the board and connected components during operation.
  • Overcurrent and Short-Circuit Protection: Built-in protection mechanisms help to prevent damage from excessive currents or accidental short circuits.
  • Compact Design: The evaluation board has been designed with a small footprint, making it ideal for space-constrained applications.
  • RoHS Compliant: Compliance with the Restriction of Hazardous Substances Directive ensures reduced environmental impact and increased safety.

Applications

The STEVAL-ISA054V1 is versatile and can be used in a variety of applications, including:

  • Industrial control systems
  • Telecommunication equipment
  • Consumer electronics
  • Portable devices and battery-powered applications

Why Choose the STEVAL-ISA054V1?

With its high efficiency, adjustable output, and comprehensive protection features, the STEVAL-ISA054V1 is an excellent choice for developers and engineers looking for a reliable and flexible power management solution. The evaluation board's design and capabilities make it a valuable tool for prototyping and testing power supply designs before moving to full-scale production.
