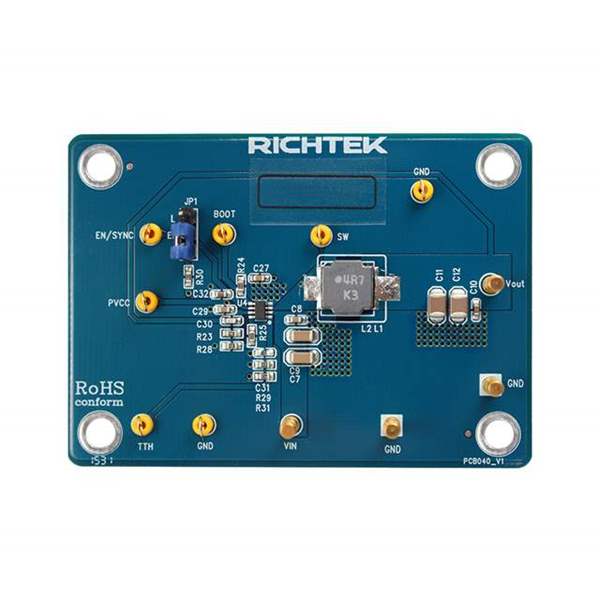

EVB_RT7296AGJ8F Real Image
Same model may have multiple batches, images only for reference.

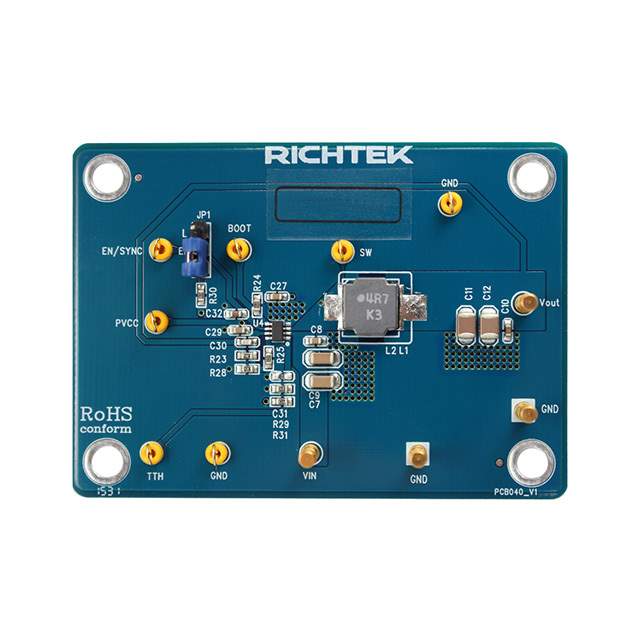

EVB_RT7296AGJ8F

Part No EVB_RT7296AGJ8F
Manufacturer Richtek USA Inc.
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description EVAL MODULE FOR RT7296AGJ8F
Datasheet
EVB_RT7296AGJ8F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Richtek USA Inc.
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 3.3V
Output Current 3A
Voltage - Input 4.5 V ~ 17 V
Regulator Topology Buck
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part RT7296A
Win Source Part Number 793411-EVB_RT7296AGJ8F
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EVB_RT7296AGJ8F CAD Model

Description

The Richtek USA Inc. EVB_RT7296AGJ8F is a fully populated development board designed for DC/DC step-down applications.

  • IC: RT7296A
  • Topology: Buck
  • Voltage Input: 4.5V to 17V
  • Voltage Output: 3.3V
  • Switching Frequency: 500kHz
  • Output Current: 3A
  • Output Type: Non-isolated
  • Popularity: Medium
