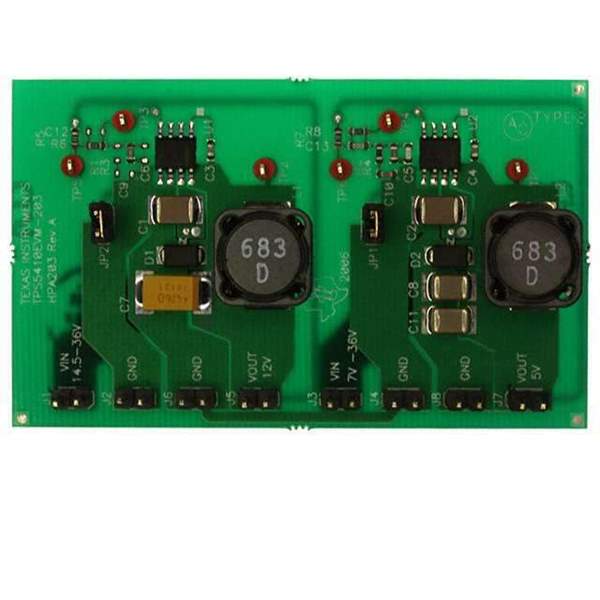

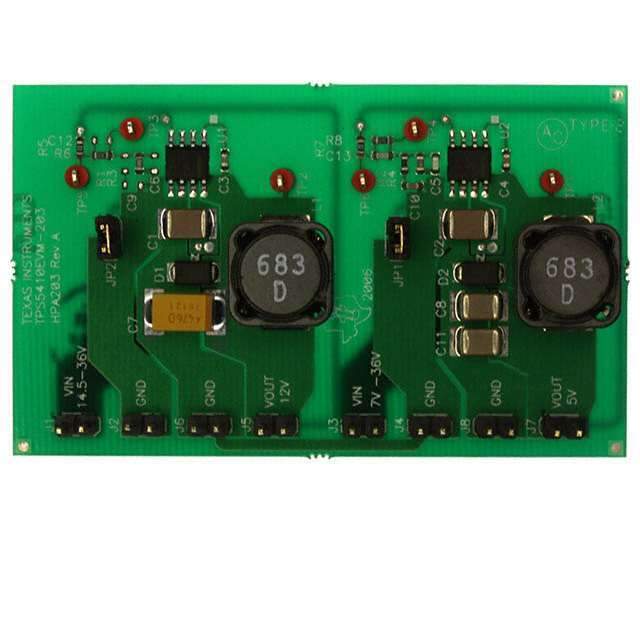

The TPS5410EVM-203 from Texas Instruments is a comprehensive evaluation module designed for testing the performance and capabilities of the TPS5410 Regulator. This regulator is a versatile and robust device that offers an efficient solution for a variety of applications requiring a step-down (buck) voltage converter.

Key Features

• Wide Input Range: The TPS5410EVM-203 operates with an input voltage range from 5.5V to 36V, making it suitable for a variety of input sources.
• Adjustable Output Voltage: Users can adjust the output voltage from 1.22V to 33V, allowing for a broad range of applications and flexibility in design.
• High Efficiency: With an integrated 1.5A continuous current switch, the module provides high efficiency power conversion, which is critical for reducing heat and improving system reliability.
• Thermal Shutdown and Overcurrent Protection: The TPS5410EVM-203 includes built-in protective features to ensure the longevity and safety of both the module and the system it is used within.
• Frequency Synchronization: It allows for synchronization to an external clock, which minimizes interference with other components in a complex system.

Applications

The versatility of the TPS5410EVM-203 makes it an ideal choice for a wide array of applications, including but not limited to:

• Industrial Power Supplies
• Automotive Systems
• Telecommunications Equipment
• Battery-Powered Devices
• Portable Electronics

Design and Layout

The evaluation module is designed with simplicity in mind, allowing for quick and easy setup. It includes test points for convenient measurements and a layout optimized for minimal noise and interference. The TPS5410EVM-203 also provides ample documentation and support, ensuring that engineers can fully explore the capabilities of the TPS5410 regulator.

Conclusion

The TPS5410EVM-203 Evaluation Module from Texas Instruments is a powerful tool for designers and engineers looking to implement a reliable and efficient voltage regulation solution in their projects. With its wide input range, adjustable output voltage, and robust protection features, it stands as an exemplary representation of Texas Instruments' commitment to high-quality and high-performance power management solutions.
