Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series MEMS
Package Bulk
Product Status Obsolete
Sensor Type Gyroscope, 3 Axis
Sensing Range ±250°/sec, ±500°/sec, ±2000°/sec
Interface I2C, SPI
Sensitivity 70m°/s, 17.5m°/s, 8.75m°/s
Voltage - Supply 2.4V ~ 3.6V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part L3GD20
Other Names 497-12888
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN OBSOLETE
Win Source Part Number 1283629-STEVAL-MKI107V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI107V2 CAD Model

Description

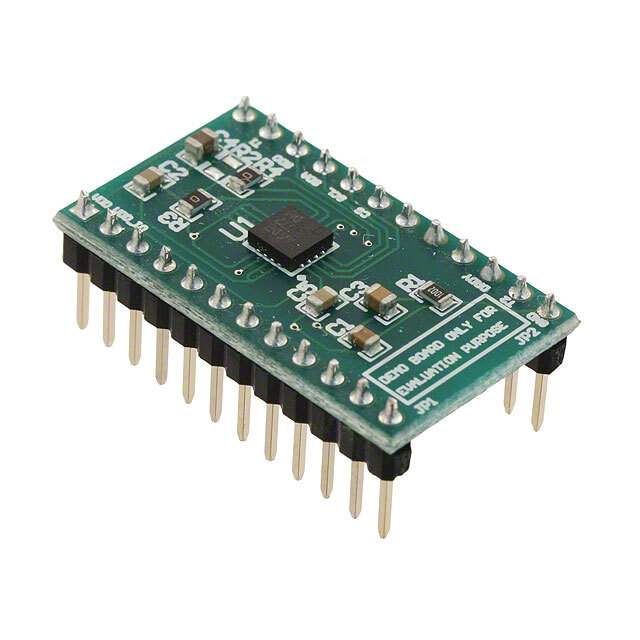

STEVAL-MKI107V2 Motion MEMS and Environmental Sensor Evaluation Board

The STEVAL-MKI107V2 is a comprehensive evaluation platform presented by STMicroelectronics, designed to provide an efficient and flexible testing environment for a wide array of MEMS sensors. This platform is particularly tailored for motion and environmental sensors, facilitating the development of applications such as wearable devices, gaming accessories, smart home systems, and industrial monitoring tools.

Key Features

  • Extensive Compatibility: The STEVAL-MKI107V2 supports a multitude of STMicroelectronics' MEMS adapters that are compatible with the standard DIL 24-pin socket, making it a versatile choice for developers looking to test different sensors.
  • Advanced Data Logging: Equipped with a high-performance STM32 microcontroller, the board provides robust data processing capabilities and features an on-board data logging system to capture sensor data efficiently.
  • User-friendly Interface: The evaluation board includes a USB connection for easy interfacing with a PC, allowing users to utilize ST's Unico GUI software for in-depth analysis and real-time data visualization.
  • Embedded Features: The board comes with a range of embedded features such as a digital microphone, pressure sensor, and temperature sensor, enabling comprehensive environmental data collection.
  • Flexible Power Options: It can be powered via USB or an external supply, ensuring adaptability for different testing setups and environments.

Application Potential

The STEVAL-MKI107V2 is not just a tool for sensor evaluation but also a valuable asset in the prototyping phase of product development. Its ability to interface with various MEMS sensors opens up possibilities for innovation in motion detection, environmental sensing, and more. Developers can rapidly test and iterate their sensor-based applications, accelerating the time-to-market for their products.

Conclusion

With its user-friendly design, compatibility with a broad range of sensors, and powerful data processing capabilities, the STEVAL-MKI107V2 from STMicroelectronics stands out as an essential tool for engineers and developers working with MEMS and environmental sensors. Whether for professional R&D or academic projects, this evaluation board is engineered to streamline development workflows and inspire next-generation sensor applications.
