STFI10NK60Z - N-channel 600 V, 0.85 Ω typ., 10 A SuperMESH™ Power MOSFET in I²PAK Package

The STFI10NK60Z is a state-of-the-art N-channel Power MOSFET produced by STMicroelectronics, utilizing the innovative SuperMESH™ technology. This technology combines the benefits of reduced on-resistance, high switching speed, and ruggedized device design to offer superior performance in a wide array of power applications. The STFI10NK60Z is designed to deliver high efficiency and reliability for both hard switching and high-frequency circuits.

Key Features:

• High Voltage Capability: With a drain-source voltage of 600 V, this MOSFET can handle high voltage applications, making it suitable for industrial, consumer, and lighting applications.
• Low On-Resistance: Featuring a typical on-resistance of just 0.85 Ω, the STFI10NK60Z ensures minimal power loss and better thermal performance, leading to higher efficiency in power conversion.
• High Current Rating: A continuous drain current of 10 A allows this MOSFET to handle significant power levels, suitable for a variety of demanding applications.
• Reduced Gate Charge: The device has been optimized to minimize gate charge (Qg), which results in faster switching and reduced switching losses.
• Enhanced dv/dt Capability: The device is engineered to withstand high dv/dt rates, enhancing its robustness and reliability in demanding conditions.
• 100% Avalanche Tested: Ensuring rugged performance, each unit is tested for avalanche energy capability, providing additional security in application.

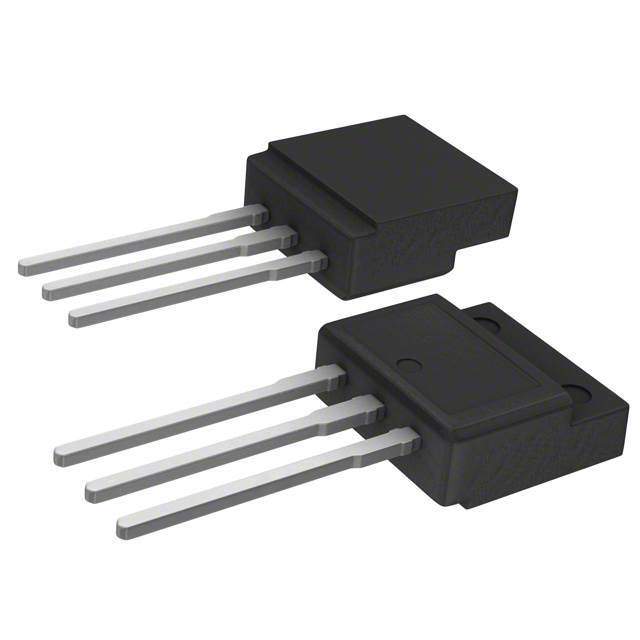

• I²PAK Package: The I²PAK package is designed for improved thermal performance and compactness, making it ideal for space-constrained applications.

Applications:

The versatility of the STFI10NK60Z allows it to be utilized in a wide range of applications, including:

• Switching applications
• Power supplies
• Motor control
• Inverters
• LED lighting
• Consumer electronics

With its combination of high voltage capability, low on-resistance, and high current rating, the STFI10NK60Z from STMicroelectronics is a robust and efficient solution for designers looking to improve power management and efficiency in their electronic designs.
