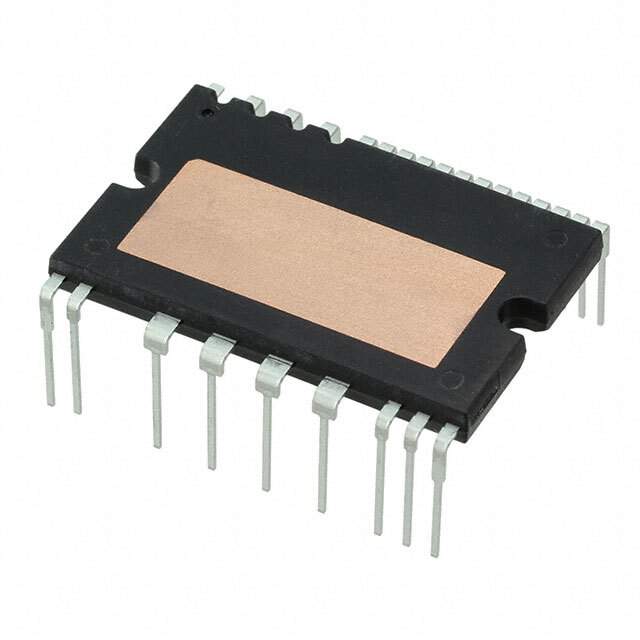

STGIB15CH60TS-LZ - STMicroelectronics Integrated Power Module

The STGIB15CH60TS-LZ from STMicroelectronics is a state-of-the-art Integrated Power Module (IPM) that is specifically designed to enhance the performance and reliability of a wide range of motor drive applications. This advanced module is a part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, which is known for its compact design and outstanding electrical efficiency.

At the heart of the STGIB15CH60TS-LZ is a three-phase inverter bridge that consists of six IGBTs with a low saturation voltage and six fast recovery diodes. The IGBTs and diodes are carefully matched to provide optimal performance and reduce power losses, thereby improving the overall efficiency of the system. This module is capable of handling a maximum current of 15A and is designed for a maximum operating voltage of 600V, making it suitable for a variety of industrial and consumer applications.

One of the key features of the STGIB15CH60TS-LZ is its built-in temperature sensing capability, which allows for real-time monitoring of the module's operating temperature. This feature is crucial for protecting the device against thermal overload and extending its lifespan. Additionally, the module includes an over-current shutdown function to further enhance its safety and reliability.

The IPM's compact and robust package is designed with a low thermal resistance, ensuring efficient heat dissipation and making it easier to integrate into a wide range of systems without the need for additional cooling measures. Its user-friendly layout simplifies the PCB design process and reduces the overall time to market for products incorporating this module.

Whether it's for industrial drives, home appliances, air conditioners, or other motor control applications, the STGIB15CH60TS-LZ offers designers a powerful and efficient solution that combines the benefits of integration with the flexibility needed to tackle various design challenges. With its proven track record of reliability and performance, the STGIB15CH60TS-LZ is an ideal choice for those looking to create high-performance, energy-efficient motor drive systems.

For more detailed technical specifications and application guidelines, designers and engineers are encouraged to consult the comprehensive datasheet and support documentation available from STMicroelectronics.
