STGIPS14K60 - STMicroelectronics

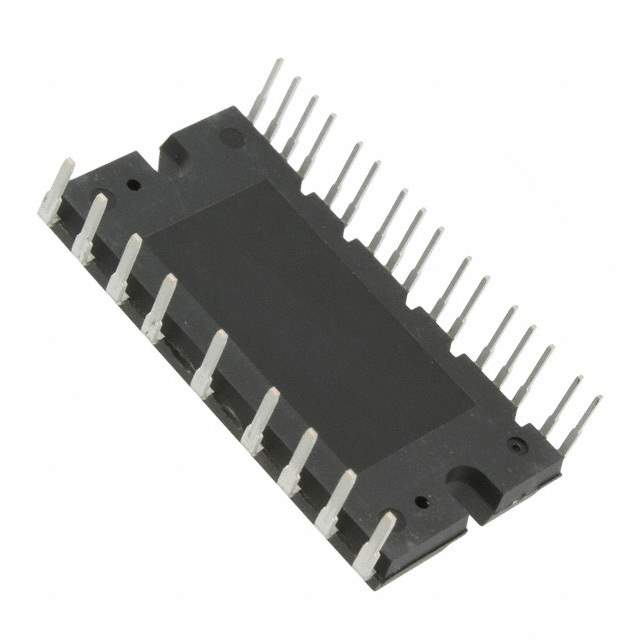

The STGIPS14K60 is a highly integrated power module from STMicroelectronics, designed to provide a compact and efficient solution for driving three-phase motor systems. This intelligent power module (IPM) is part of the SLLIMM™-nano series and is particularly suited for applications such as air conditioners, refrigerators, washing machines, and other low-power motor drives.

At the heart of the STGIPS14K60 is a 600V, 14A IGBT inverter bridge which includes six fast recovery diodes, making it capable of delivering exceptional performance in various switching applications. The module is designed to simplify the overall design process by integrating key components into a single package, thus reducing the number of external components required and minimizing the PCB footprint.

The STGIPS14K60 boasts a range of features that enhance its functionality and reliability. It comes with a built-in temperature sensor and overcurrent protection, which are critical for ensuring the longevity and safe operation of the power module. Additionally, the module includes under-voltage lockout protection for both the low-side and high-side sections, providing an extra layer of safety for the device.

For ease of use, the module supports 3.3V/5V TTL/CMOS inputs with hysteresis and includes an internal bootstrap diode for the high-side gate drive, simplifying the external circuitry required for the gate driving. The STGIPS14K60 also features an optimized layout for excellent thermal performance, with a low thermal resistance package that ensures efficient heat dissipation during operation.

STMicroelectronics has designed the STGIPS14K60 with a focus on robustness and durability, making it a reliable choice for manufacturers and designers looking to enhance the performance and efficiency of their motor drive systems. The module's compact size, integrated features, and high level of integration make it an ideal solution for space-constrained applications that require high power density and low power dissipation.

Overall, the STGIPS14K60 represents STMicroelectronics' commitment to providing advanced solutions for power management and motor control, helping to drive innovation in the field of industrial and consumer electronics.
