The STH270N4F3-6 is a highly efficient, robust Power MOSFET designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and high-performance components. This particular MOSFET is part of the STripFET F3 series, which is renowned for delivering low on-resistance and low gate charge, making it an ideal choice for a wide range of power applications.

Key Features

• Voltage Rating: The STH270N4F3-6 boasts a maximum voltage rating of 40V, making it suitable for systems that require high voltage thresholds.
• Current Capacity: With a continuous drain current of 120A, it can handle significant power, ensuring reliability in demanding situations.
• Low RDS(on): The device offers an ultra-low on-resistance of just 2.7mΩ, which translates to reduced conduction losses and improved overall efficiency.
• High Switching Speed: Thanks to its low gate charge and capacitance, the MOSFET is capable of fast switching, which is critical for high-efficiency power supplies and converters.

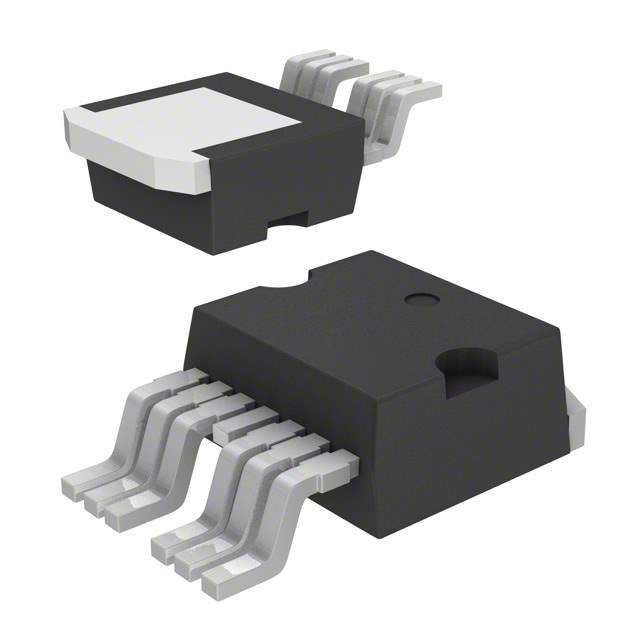

• Robust Package: Encased in an H2PAK-6 package, the STH270N4F3-6 is designed for optimal thermal performance and durability, even in harsh environments.

Applications

The versatility of the STH270N4F3-6 allows it to be used in a variety of applications, including:

• High-efficiency DC/DC converters
• Motor control for automotive applications
• Power management solutions
• Switching regulators
• Synchronous rectification

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The STH270N4F3-6 is no exception, with rigorous testing and quality control measures in place to ensure it performs consistently across various conditions. This commitment to quality makes the STH270N4F3-6 a trusted component in the design of reliable and efficient power systems.
