STL20NM20N - Power MOSFET by STMicroelectronics

The STL20NM20N is a state-of-the-art MDmesh™ DM2 Power MOSFET designed and manufactured by STMicroelectronics, a global semiconductor leader renowned for its innovative approach to delivering power-efficient solutions. This MOSFET is part of ST's MDmesh series, which is well-known for its excellent energy efficiency and high switching performance.

With a drain-source voltage (V<sub>DS) rating of 200V, the STL20NM20N is ideally suited for a wide range of high-voltage applications. This includes, but is not limited to, switch-mode power supplies (SMPS), lighting applications, DC-DC converters, and high-efficiency energy management systems. Its high voltage capability ensures that it can handle the demands of applications requiring robust voltage tolerances.

The STL20NM20N boasts a maximum continuous drain current (I<sub>D) of 20A, allowing it to drive significant currents without overheating. This makes it an excellent choice for power-intensive applications. Furthermore, the MOSFET features a low on-resistance (R<sub>DS(on)) of only 190 mΩ (max), which minimizes conduction losses and enhances overall system efficiency.

One of the key benefits of the STL20NM20N is its fast-switching capability, thanks to its MDmesh DM2 technology, which combines the advantages of reduced gate charge (Q<sub>g) and optimized capacitances. This leads to lower switching losses and better performance in high-frequency circuits. Additionally, the device is designed to have a low gate threshold voltage (V<sub>GS(th)), further improving its switching characteristics and making it easier to drive.

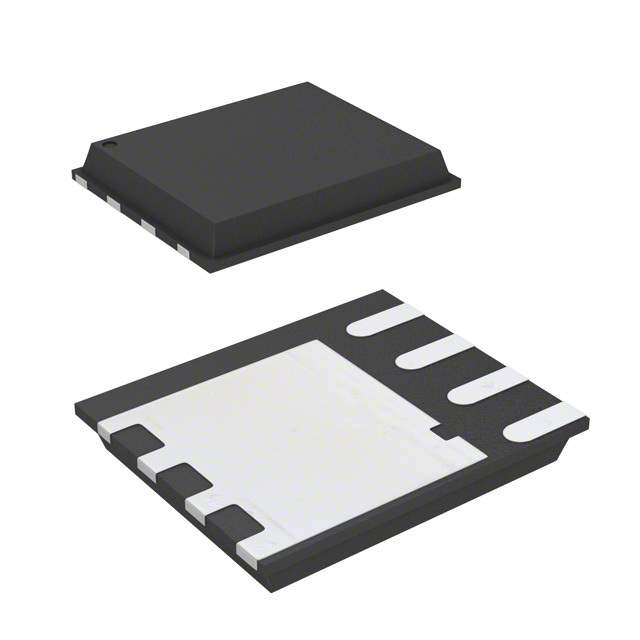

The STL20NM20N comes in a PowerFLAT™ 5x6 package, which is not only compact but also provides excellent thermal performance. This packaging technology ensures that the MOSFET can operate reliably even under high thermal conditions, which is critical for maintaining performance and longevity in power applications.

STMicroelectronics has equipped the STL20NM20N with all the necessary features to ensure safe operation, including 100% avalanche tested ruggedness and a high dv/dt capability. This product is designed to meet the stringent requirements of modern electronic systems, offering designers a reliable and efficient solution for their high-voltage power conversion needs.
