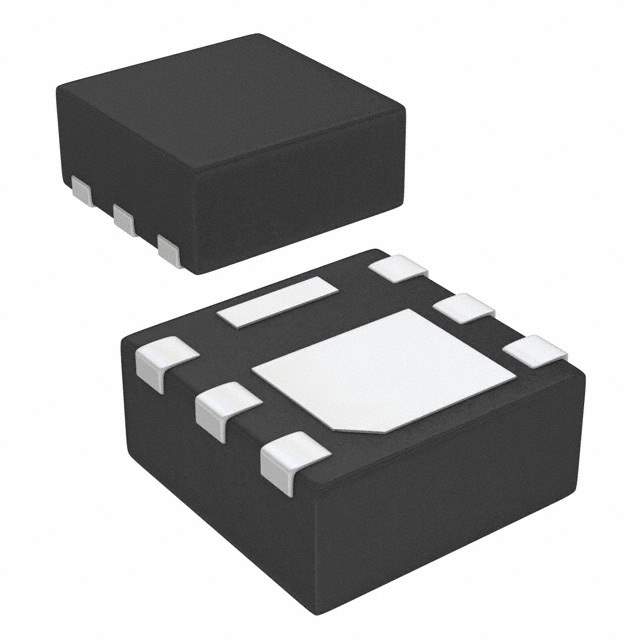

The STL7N6F7 is a highly efficient, N-channel Power MOSFET designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This MOSFET is part of ST's STripFET™ F7 series, which utilizes the latest advancements in silicon technology to offer superior switching performance with low on-state resistance.
Key Features
- Low Threshold Drive: The STL7N6F7 features a low gate threshold voltage, making it suitable for a wide range of applications that require high efficiency at low gate drive voltages.
- High Current Capability: With a continuous drain current of up to 60A, this MOSFET can handle high current loads, making it ideal for power-intensive applications.
- Low On-Resistance: The device boasts an exceptionally low on-state resistance (R<sub>DS(on)) of typically just 0.0047 ohms, which minimizes power losses and improves overall efficiency.
- 100% Avalanche Tested: Ensuring reliability and robustness, the STL7N6F7 is guaranteed to withstand stressful conditions by being 100% avalanche tested.
Applications
The STL7N6F7 is versatile and can be used in a variety of applications, including:
- Switch mode power supplies (SMPS)
- DC-DC converters
- Motor control applications
- Automotive systems
- Power management solutions
Environmental and Quality Certifications
STMicroelectronics is committed to environmental sustainability and quality. The STL7N6F7 complies with a variety of standards, including:
- RoHS compliant
- Qualified to industrial standards
- ECOPACK2 compliant, ensuring environmentally friendly manufacturing and disposal
Summary
The STL7N6F7 from STMicroelectronics is a testament to the company's dedication to providing power-efficient and high-performance components for today's demanding electronic applications. Its low on-resistance, high current handling, and robust design make it a top choice for engineers and designers looking to optimize their power management systems.
