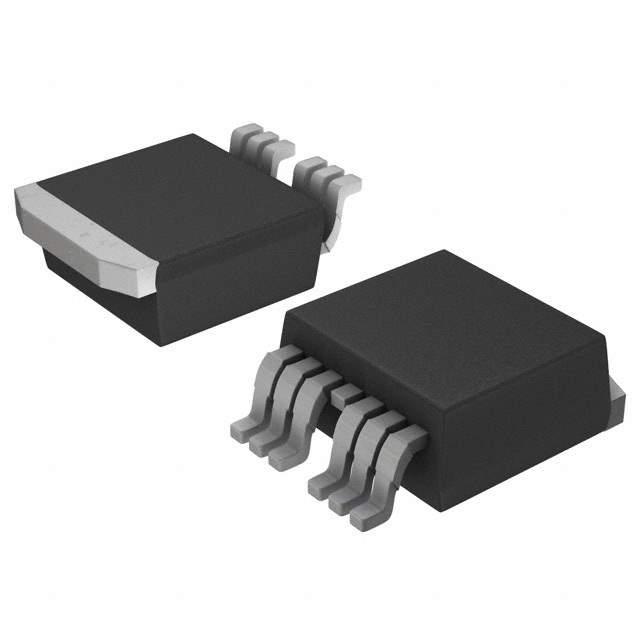

The NP180N055TUK is a power MOSFET from Renesas Electronics, designed for high-efficiency switching applications. This N-channel MOSFET is commonly used in power supplies, motor control circuits, and other applications where efficient power conversion is essential.

Applications

• DC-DC Converters: Used in synchronous rectification stages of DC-DC converters to improve efficiency.
• Motor Control: Switching element in motor control circuits, providing efficient control of motor speed and torque.
• Power Supplies: Primary or secondary side switching element in AC-DC power supplies and inverters.
• Load Switching: High-side or low-side switch for controlling power to various loads.
• Battery Management Systems: Used in battery charging and discharging circuits.

Features

• Voltage Rating: 55V Drain-Source Breakdown Voltage (Vdss).
• Current Rating: 180A Continuous Drain Current (Id).
• Low On-Resistance: Very low RDS(on) to minimize conduction losses.
• Fast Switching Speed: Fast switching characteristics for high-frequency operation.
• Avalanche Rated: Designed to withstand avalanche breakdown events.
• Operating Temperature: Wide operating temperature range for reliable performance in various environments.
• Surface Mount Package: Available in a surface mount package for easy PCB assembly.

Benefits

• High Efficiency: Low RDS(on) and fast switching speed minimize power losses, improving overall efficiency.
• High Power Density: High current rating and low on-resistance enable high power density designs.
• Robustness: Avalanche rating and wide operating temperature range ensure reliable operation in demanding applications.
• Simplified Design: Easy to use in a variety of applications due to its standard characteristics.
• Compact Size: Surface mount package allows for compact designs.

Additional Details

The NP180N055TUK requires careful thermal management to ensure reliable operation. A suitable heat sink is often necessary for dissipating heat. The device is typically driven with a gate voltage of 10V. Input capacitance and gate charge are important parameters to consider when designing the gate drive circuit. The MOSFET is designed to withstand electrostatic discharge (ESD). It is important to follow Renesas's recommended application notes and design guidelines to ensure proper operation and avoid damage to the device. The device is typically mounted on a PCB using surface mount techniques. Proper biasing is essential for achieving the desired performance characteristics. The NP180N055TUK is a robust and reliable device suitable for demanding high-power switching applications.
