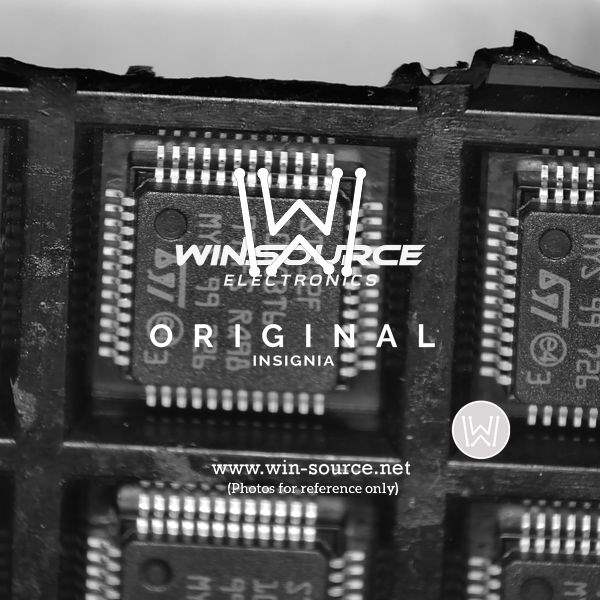

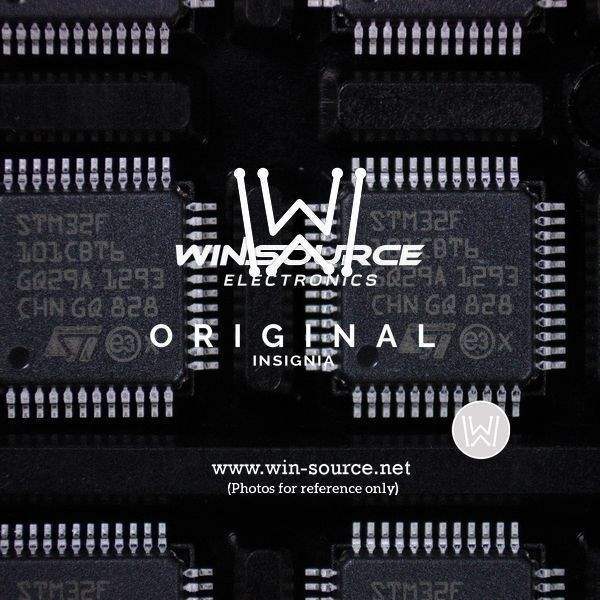

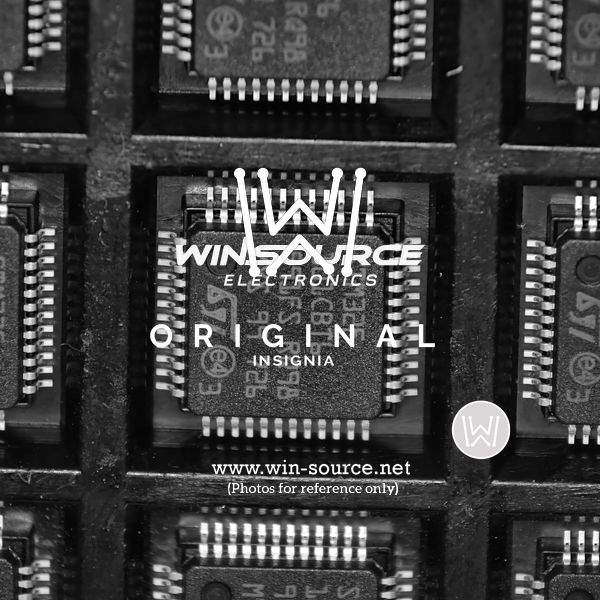

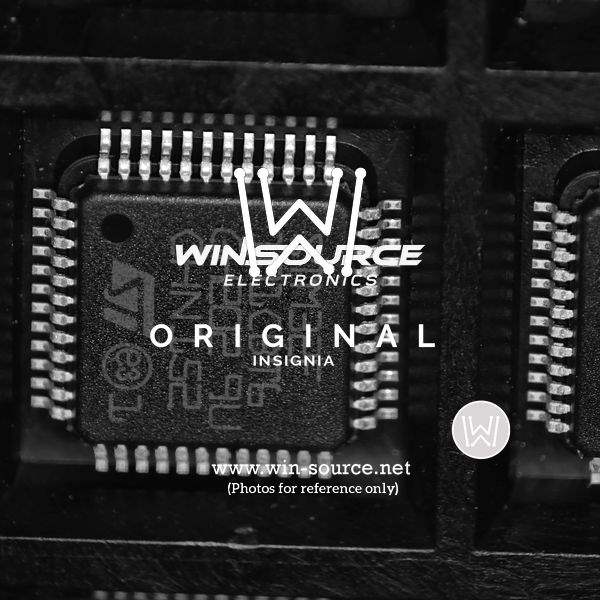

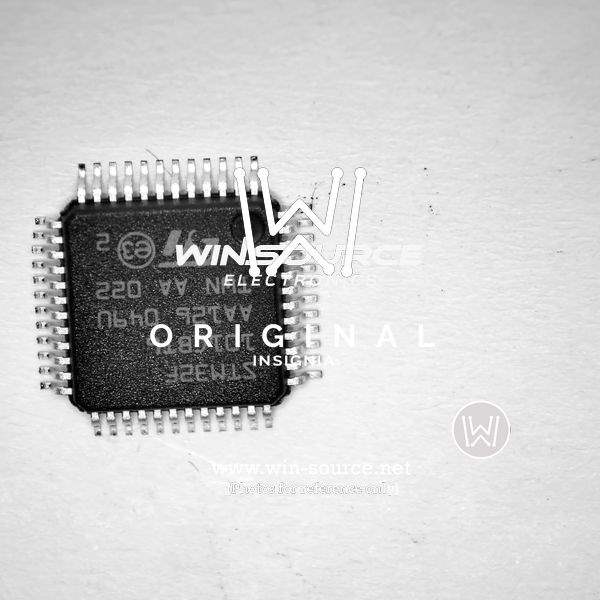

Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tray
Status Active
Core Processor ARM Cortex-M3
Part Core Size 32-Bit
Speed(Frequency) 36MHz
Number of I/O 37
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
Data RAM Size 16K x 8
Supply Voltage - Operating 2 V to 3.6 V
Data Converters A/D 10x12b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 48-LQFP (7x7)
Win Source Part Number 031260-STM32F101CBT6
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name STM32F101
Introduction Date June 06, 2007
ECCN 3A991.a.2
Country of Origin China, Malaysia, Philippines, Taiwan
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian STM32F101CBT6 CAD Model

Description

The STM32F101CBT6 is a high-performance ARM Cortex-M3 based microcontroller produced by STMicroelectronics. This device is part of the STM32F101xx medium-density performance line, which is renowned for its balance between performance, power consumption, and cost, making it an ideal choice for a wide range of applications in the industrial, medical, and consumer markets.

Key Features

  • Core: ARM 32-bit Cortex-M3 CPU with a frequency of up to 36 MHz, delivering 1.25 DMIPS/MHz (Dhrystone 2.1) performance.
  • Memory: Equipped with 128 Kbytes of Flash memory and 16 Kbytes of SRAM, providing ample storage for complex applications.
  • I/Os: Up to 37 I/O pins and 2 I/Os with 5V tolerant capability, allowing for flexible connection to peripherals.
  • Debug mode: Serial wire debug (SWD) & JTAG interfaces, as well as a comprehensive set of debug features.
  • Connectivity: Includes interfaces such as I2C, USARTs, SPIs, and CAN, ensuring easy integration with a wide range of external modules and devices.
  • ADC: 12-bit, 1 μs Analog-to-Digital Converters (ADCs), with up to 10 channels, enabling accurate sensor readings and data acquisition.
  • Timers: Multiple timers, including a PWM timer for motor control, and a general-purpose timer for a broad array of timing and counting functionalities.
  • Power efficiency: Operates from a 2.0 to 3.6 V power supply and features multiple power-saving modes, making it suitable for battery-powered applications.
  • Package: Available in a 48-pin LQFP package that is both compact and offers good thermal performance.

Applications

The STM32F101CBT6 microcontroller is versatile and can be used in a variety of applications, including:

  • Industrial control systems
  • Medical devices
  • Home automation
  • Alarm systems
  • Consumer electronics
  • Power management systems

With its robust design and comprehensive feature set, the STM32F101CBT6 is a reliable choice for designers looking to develop applications requiring a high level of integration, flexibility, and performance within a constrained power budget.
