STM32F103T8U6 Microcontroller Overview

The STM32F103T8U6 is a high-performance ARM Cortex-M3 based microcontroller, designed to offer a balance between performance, power consumption, and cost. Manufactured by STMicroelectronics, a leader in the semiconductor industry, this microcontroller is part of the STM32F1 series, known for its robust design and versatile features. The STM32F103T8U6 is particularly suitable for a wide range of applications, including industrial control, medical equipment, consumer electronics, and embedded systems.

Key Features

• Core: ARM Cortex-M3 processor, which operates at a frequency of up to 72 MHz.
• Memory: The device comes with 64 Kbytes of Flash memory and 20 Kbytes of SRAM, providing ample space for complex applications.
• I/Os: It offers up to 37 I/O ports, which are 5V-tolerant, ensuring compatibility with a wide range of peripherals.
• Communication Interfaces: Includes a rich set of peripherals such as I2C, SPI, and USARTs, which facilitate easy communication with other devices and systems.
• ADC: Features a 12-bit, 1 µs Analog-to-Digital Converter (ADC) with up to 16 channels, allowing precise measurement of analog signals.
• Timers: Comes with advanced-control timers, general-purpose timers, and basic timers to handle a wide array of timing-related tasks.
• Debugging Features: Embedded with in-circuit debugging and programming via SWD (Serial Wire Debug) and JTAG interfaces.
• Operating Voltage: Can operate within a range of 2.0 to 3.6 volts, catering to low-power requirements.

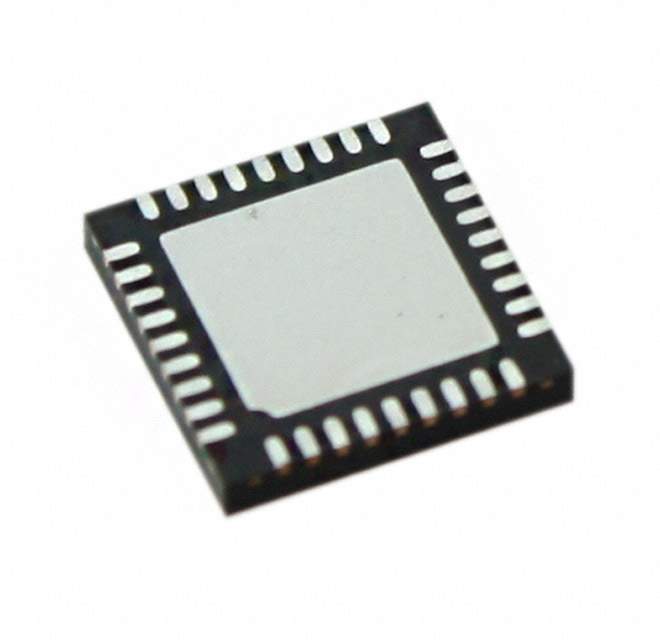

• Package: Available in a 36-pin UFQFPN package, which is ideal for space-constrained applications.

Applications

The STM32F103T8U6 microcontroller's combination of processing power, memory capacity, and rich set of peripherals makes it an excellent choice for applications that require a high level of integration and efficiency, such as:

• Industrial automation and control systems
• Medical devices and equipment monitoring
• Consumer electronics, such as smart home devices and portable gadgets
• Sensor hubs and IoT (Internet of Things) devices
• Automotive applications, including in-car entertainment and diagnostics
• Robotics and unmanned vehicles

With its robust design and comprehensive feature set, the STM32F103T8U6 microcontroller is a reliable and cost-effective solution that can meet the needs of both complex and straightforward applications.
