Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series STM32 F1
Packaging Tray
Core Processor ARM Cortex-M3
Core Size 32-Bit
Speed 72MHz
Connectivity CAN, I2C, IrDA, LIN, SPI, UART/USART, USB
Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Number of I/O 80
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
RAM Size 48K x 8
Supply Voltage 2 V ~ 3.6 V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)

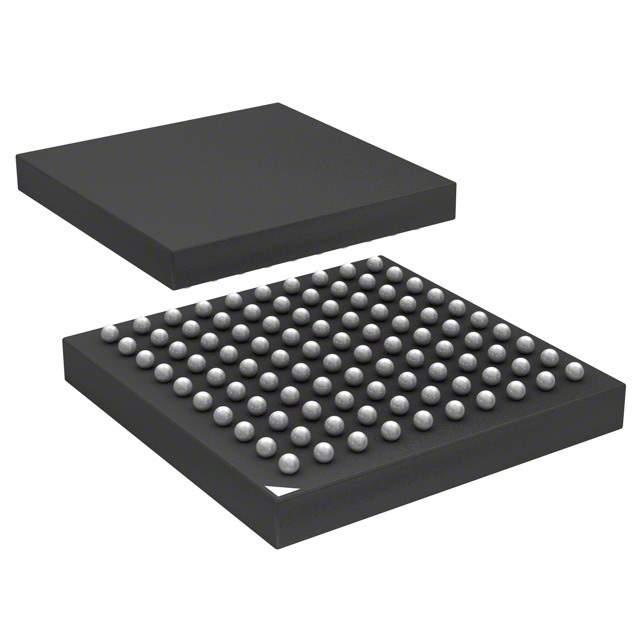

Package 100-LFBGA
Manufacturer Package 100-LFBGA (10x10)
Win Source Part Number 708403-STM32F103VCH6
Series TPS series
Popularity Medium
Supply and Demand Status Balance
Family Name STM32F103
Introduction Date April 07, 2008
ECCN 3A991.a.2
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian STM32F103VCH6 CAD Model

Description

STM32F103VCH6 Microcontroller Overview

The STM32F103VCH6 is a performance-driven microcontroller that comes from the reputable STM32 family, manufactured by STMicroelectronics. This microcontroller is built around the high-performance ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 72 MHz. The device features a high-density memory integration with 256 KB of Flash memory and 48 KB of SRAM, making it suitable for embedded applications requiring substantial code storage and efficient data management.

This microcontroller is designed to deliver the perfect balance between performance, power consumption, and cost. It includes a comprehensive set of peripherals that can be used for a wide range of applications such as motor control, industrial automation, medical devices, and consumer electronics. The STM32F103VCH6 supports an extensive interrupt and DMA request management that allows for a flexible and efficient use of the CPU, thereby reducing the overhead of peripheral data management.

Key Features:

  • Core: ARM Cortex-M3 32-bit RISC
  • Operating Frequency: Up to 72 MHz
  • Flash Memory: 256 KB
  • SRAM: 48 KB
  • Supply Voltage: 2.0 to 3.6 V
  • Timers: Multiple 16-bit and 32-bit timers
  • Communication Interfaces: I2C, SPI, USART, USB, and CAN
  • 12-bit Analog-to-Digital Converters (ADCs)
  • Debugging: Serial Wire Debug (SWD) & JTAG interfaces
  • Up to 37 GPIOs with external interrupt capability

The STM32F103VCH6 also offers robust I/O capabilities, with up to 37 general-purpose I/O pins, all of which can be mapped to 16 external interrupt vectors. The device includes several communication interfaces, such as I2C, SPI, USART, USB, and CAN, allowing for versatile connectivity options. The integration of multiple 12-bit ADCs enables precise analog signal measurement for complex applications.

For development and debugging purposes, the microcontroller supports both Serial Wire Debug (SWD) and JTAG interfaces, ensuring a streamlined and efficient workflow for developers. The STM32F103VCH6 operates within a supply voltage range of 2.0 to 3.6 volts, catering to low-power requirements while maintaining a robust performance.

Overall, the STM32F103VCH6 from STMicroelectronics is a highly capable microcontroller that offers a rich set of features and peripherals, making it an excellent choice for high-demand embedded system applications.
