Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 114
Program Memory Size 1.5MB (1.5M x 8)
Program Memory Type FLASH
RAM Size 320K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Base Product Number STM32F423
Standard Package 360
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1262852-STM32F423ZHT3
Ultra Librarian 3D Model Ultra Librarian STM32F423ZHT3 CAD Model

Description

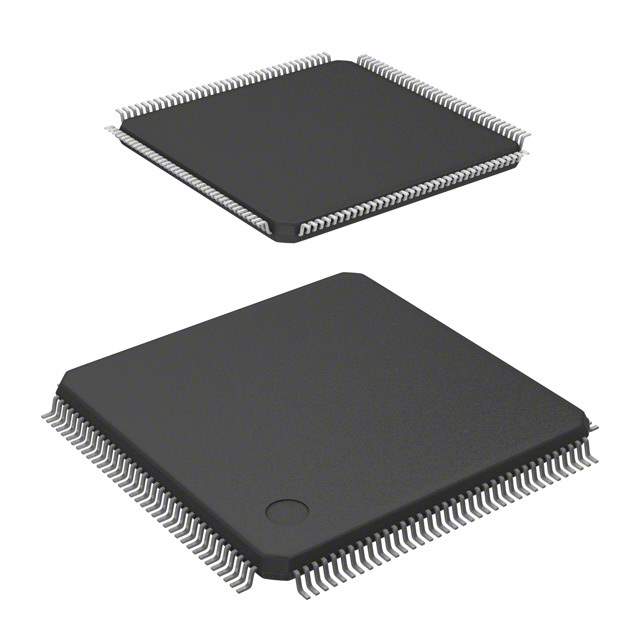

STM32F423ZHT3 Microcontroller by STMicroelectronics

The STM32F423ZHT3 is a high-performance microcontroller from STMicroelectronics that belongs to the STM32F4 series, renowned for its advanced ARM Cortex-M4 core. This microcontroller is designed to deliver a perfect blend of real-time capabilities, digital signal processing (DSP), low-power operation, and an impressive set of integrated features. It's an ideal choice for applications ranging from industrial control systems to medical devices, and from automotive solutions to consumer electronics.

Key Features

  • Core: ARM Cortex-M4 with FPU and DSP instructions, running at frequencies up to 180 MHz, which provides the computational power needed for complex algorithms and real-time processing.
  • Memory: Comes with a generous 256 KB of RAM and 1.5 MB of flash memory, ensuring ample space for application code and data storage.
  • High Connectivity: Features a range of communication interfaces, including USB OTG, CAN, I2C, SPI, USART, and SDIO, making it versatile for various communication requirements.
  • Advanced Analog: Equipped with multiple 12-bit ADCs, 2 DACs, and a range of timers, providing excellent support for analog-intensive applications.
  • Energy Efficient: Incorporates ST's ART Accelerator™, alongside dynamic voltage scaling, to optimize power consumption for both active and standby modes.

System Integration

The STM32F423ZHT3 integrates several system-level peripherals, including a real-time clock, independent watchdogs, and a backup SRAM, which enhance its reliability for critical applications. Its flexible memory protection unit (MPU) supports safe execution by providing hardware-based security for application tasks.

Development and Debugging

STMicroelectronics supports the STM32F423ZHT3 with a comprehensive set of development tools, including the STM32Cube software suite and a wide range of development kits. The microcontroller also features advanced debugging capabilities with its integrated SWD/JTAG debug support, making it easier for engineers to troubleshoot and optimize their applications.

Overall, the STM32F423ZHT3 is a powerful and flexible microcontroller choice for designers looking to balance performance, power efficiency, and feature integration in their next embedded project.
