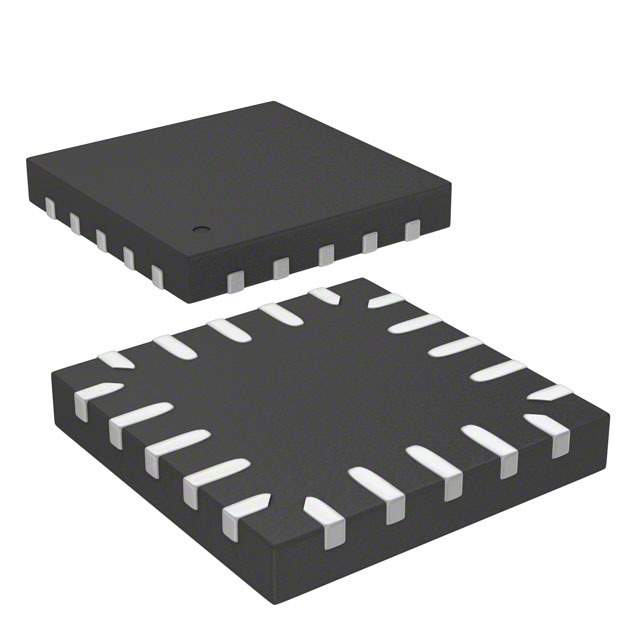

The STM8S003F3U6TR is a high-performance microcontroller unit (MCU) from STMicroelectronics, featuring the robust STM8 core operating at a frequency of up to 16 MHz. This MCU is part of the STM8S series, which is designed for budget-conscious applications requiring good computing power and specific feature sets.

Key Features

• Core: STM8 core with integrated debug module and up to 16 MHz clock frequency.
• Memory: 8 Kbytes of Flash program memory with read-while-write support, 128 bytes of EEPROM, and 1 Kbyte of RAM.
• I/Os: Up to 28 I/O pins, all of which are 5 V tolerant.
• Timers: Advanced control timer, two general-purpose timers, and a basic timer, all with interrupt capability.
• Communication Interfaces: UART, SPI, and I²C interfaces for full-duplex communication with peripheral devices.
• ADC: 10-bit analog-to-digital converter with up to 5 multiplexed channels, providing accurate analog signal measurement.
• Supply Voltage: 2.95 V to 5.5 V operating range, suitable for various power supply conditions.
• Package: Available in a TSSOP20 package, offering a compact footprint for space-constrained applications.

Applications

The STM8S003F3U6TR is a versatile MCU that can be used in a wide range of applications, including:

• Consumer electronics
• Home appliances
• Industrial control systems
• Automotive systems
• Lighting systems
• Battery management

Quality and Reliability

STMicroelectronics ensures high-quality standards for the STM8S003F3U6TR, with rigorous testing and quality control measures in place. This MCU is designed to meet the demands of both commercial and industrial applications, providing reliable performance even in harsh environments.

Support and Resources

Developers can access a wealth of resources, including development tools, software libraries, and application notes, to facilitate the design process and reduce time to market. STMicroelectronics provides comprehensive support for the STM8S003F3U6TR, ensuring that designers can leverage the full potential of this powerful MCU.
