Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 650V
Current - Continuous Drain (Id) @ 25°C 10A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4.5V @ 100μA
Gate Charge (Qg) (Maximum) @ Vgs 42nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1180pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 150W (Tc)
Rds On (Maximum) @ Id, Vgs 1 Ohm @ 3.6A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-220
Package TO-220-3
Win Source Part Number 1261654-STP10N65K3
Manufacturer Homepage www.st.com
Family Name STP10N65K3
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STP10N65K3 CAD Model

Description

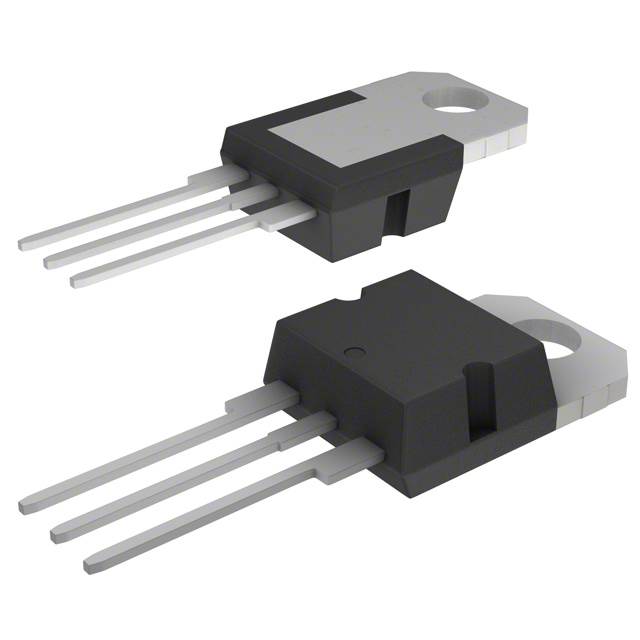

STP10N65K3 - N-channel 650 V, 0.85 Ohm typ., 10 A MDmesh™ K3 Power MOSFET in TO-220 Package

The STP10N65K3 is a high-performance N-channel Power MOSFET presented by STMicroelectronics, designed to meet the efficiency and reliability requirements of modern electronic applications. This advanced power MOSFET is a part of the MDmesh™ K3 series, which is renowned for its excellent RDS(on) area ratio and reduced gate charge, making it an ideal choice for high-efficiency power conversion applications.

With a drain-source voltage (Vds) of 650 V, the STP10N65K3 ensures safe operation even under high voltage conditions, making it suitable for a wide range of applications, including switch-mode power supplies (SMPS), lighting applications, adapters, solar inverters, and industrial automation systems. The device boasts a maximum continuous drain current (Id) of 10 A, allowing it to handle significant power without compromising performance.

The STP10N65K3's on-state resistance (RDS(on)) is exceptionally low at just 0.85 Ohm typ., which significantly reduces conduction losses and improves overall efficiency. This feature, combined with a low gate charge (Qg), enhances the device's switching performance, which is critical for applications requiring fast switching frequencies.

The MOSFET is housed in the industry-standard TO-220 package, which offers a balance of compactness and power dissipation capabilities. The TO-220 package is widely accepted in the industry for its ease of integration into various circuit designs and its ability to handle high thermal loads.

Furthermore, the STP10N65K3 incorporates STMicroelectronics' state-of-the-art MDmesh™ K3 technology, which optimizes the device for high commutation ruggedness and reduced leakage currents. This technology ensures that the MOSFET operates reliably and efficiently, even under harsh conditions.

In summary, the STP10N65K3 from STMicroelectronics is a robust and efficient solution for designers looking to improve the performance of their power management systems. Its combination of high voltage capability, low on-resistance, fast switching, and a reliable package makes it a versatile component suitable for a variety of demanding applications.
