Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 19 Weeks
Features LED Driver IC 16 Output Linear Shift Register - Dimming 40mA 24-SOP
Manufacturer STMicroelectronics
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount

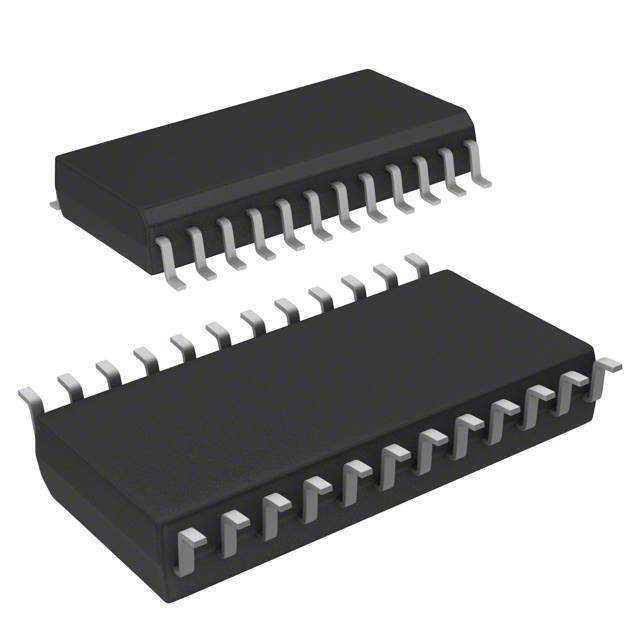

Package 24-SOIC (0.295", 7.50mm Width)
Case / Package 24-SOP
Family Name STP16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 497-9080-6, 497-9080-2, 497-9080-1
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898314-STP16DPPS05MTR
Ultra Librarian 3D Model Ultra Librarian STP16DPPS05MTR CAD Model

Description

The STP16DPPS05MTR is a state-of-the-art LED sink driver designed and manufactured by STMicroelectronics, a global semiconductor leader. This integrated circuit (IC) is specifically tailored for driving LEDs with high precision and efficiency, making it an ideal solution for a wide range of applications including signage, backlighting, and decorative lighting.

Key Features

  • Output Configuration: The device features 16 constant-current sink channels, each capable of providing up to 40 mA of drive current, ensuring uniform brightness across all connected LEDs.
  • Adjustable Output Current: Users can easily program the output current through an external resistor, allowing for fine-tuning of the LED brightness to the desired level.
  • Error Detection: STP16DPPS05MTR incorporates error detection features such as open LED and short-circuit detection, which enhances the overall reliability and longevity of the lighting system.
  • Thermal Protection: The IC includes thermal shutdown protection to prevent damage from overheating, ensuring safe operation under various conditions.
  • Flexible Control Interface: The device supports both serial and parallel data input, providing designers with flexibility in controlling the LED array.
  • Low Voltage Operation: It operates at a low voltage, which makes the device suitable for battery-powered applications and helps in reducing overall power consumption.

Applications

The STP16DPPS05MTR is versatile and can be used in a multitude of applications that require precise LED control. Its robust design and feature set make it particularly well-suited for:

  • LED display panels
  • Message boards
  • Channel letters
  • Architectural lighting
  • General-purpose LED illumination

Package and Availability

This LED sink driver is available in a TSSOP24 package, which is compact and suitable for space-constrained applications. The part number STP16DPPS05MTR denotes the tape and reel packaging option, which facilitates automated assembly processes, making it ideal for mass production requirements.

With its combination of performance, efficiency, and ease of use, the STP16DPPS05MTR from STMicroelectronics represents a robust solution for any design requiring reliable and precise LED control.
