Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr STMicroelectronics
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 600 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 480 µA @ 60 V
Operating Temperature - Junction 150°C (Max)
Mounting Type Through Hole

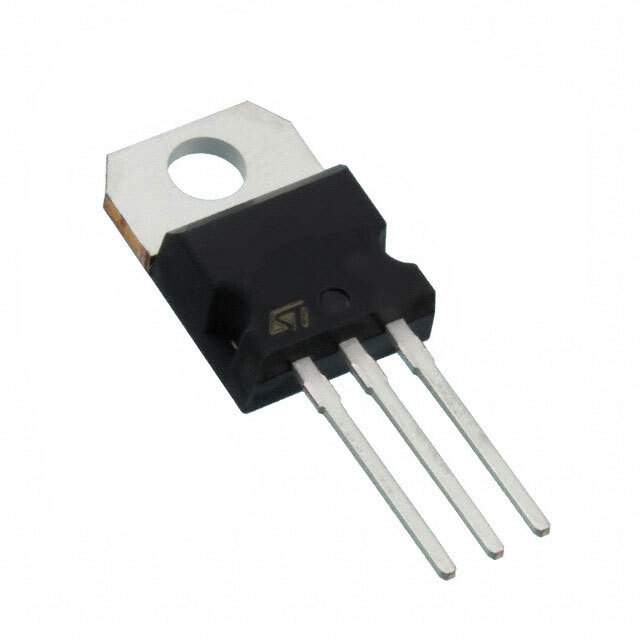

Package / Case TO-220-3
Supplier Device Package TO-220AB Narrow Leads
Base Product Number STPS30L60
Other Names 497-15152-5,-497-15152-5,STPS30L60CTN
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282880-STPS30L60CTN
Ultra Librarian 3D Model Ultra Librarian STPS30L60CTN CAD Model

Description

STPS30L60CTN - High-Efficiency Power Schottky Rectifier

The STPS30L60CTN is a robust and highly efficient power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This component is engineered to meet the demanding requirements of high-frequency power switching and rectification in a variety of electronic applications.

Key Features:

  • Dual Center Tap Schottky Rectifier: The STPS30L60CTN features a dual center tap configuration, making it suitable for both single and multiphase rectifiers.
  • High Forward Surge Capability: This device is capable of handling high surge currents, ensuring reliability and robustness in applications subject to surge conditions.
  • Low Forward Voltage Drop: The low forward voltage drop results in reduced power loss and improved efficiency, which is essential for power conservation in portable and energy-sensitive devices.
  • High Junction Temperature: With an operating junction temperature range of -40°C to 150°C, the STPS30L60CTN is designed to withstand extreme thermal environments.
  • Insulated Package: The device comes in an insulated TO-220AB package, providing electrical isolation from the printed circuit board and enhancing thermal performance.

Applications:

The STPS30L60CTN is ideal for a wide range of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • High-frequency DC/DC converters
  • Free-wheeling diodes
  • Reverse battery protection
  • Automotive applications

Product Summary:

The STPS30L60CTN by STMicroelectronics is a high-performance Schottky rectifier that combines high surge capability, low forward voltage drop, and a high junction temperature range to deliver superior performance in power rectification tasks. Its insulated TO-220AB package ensures ease of integration into various circuit designs while providing excellent thermal characteristics and electrical isolation. Whether used in power supplies, automotive electronics, or other high-efficiency power conversion systems, the STPS30L60CTN stands out as a reliable and efficient solution for designers and engineers.
