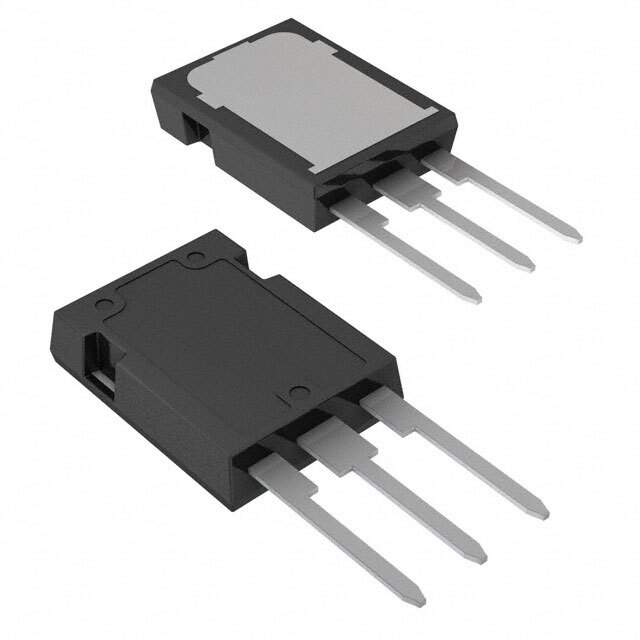

The STY139N65M5 is a state-of-the-art power MOSFET transistor designed and manufactured by STMicroelectronics, a global semiconductor leader. This device is part of the MDmesh™ M5 series, which features ST's proprietary super-junction technology that enables outstanding on-resistance and switching performance. The STY139N65M5 is particularly suitable for high-efficiency applications that require a combination of low power loss and fast switching.

Key Features

• High Voltage Capability: With a drain-source voltage (V<sub>DS) of 650V, the STY139N65M5 is well-suited for applications requiring high voltage operation.
• Low On-Resistance: The device boasts a very low on-resistance (R<sub>DS(on)), which is typically around 0.032 ohms. This low on-resistance helps to minimize conduction losses and improve overall system efficiency.
• Fast Switching Speed: Fast switching characteristics make the STY139N65M5 ideal for high-frequency circuits, reducing switching losses and enabling more efficient power conversion.
• Reduced Gate Charge: The MOSFET has a low gate charge (Q<sub>g), which reduces the power required to turn the transistor on and off, thus saving energy and reducing heat dissipation.
• Enhanced Thermal Performance: The device is designed with an optimal package for improved thermal resistance, ensuring reliability and longevity even under high temperature operating conditions.

Applications

The STY139N65M5 is versatile and can be used in a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• LED Lighting
• Welding Equipment
• Solar Inverters
• Uninterruptible Power Supplies (UPS)
• High-Performance Drives

Quality and Reliability

STMicroelectronics ensures that the STY139N65M5, like all its products, meets the highest quality and reliability standards. The device is subjected to rigorous testing and validation processes to guarantee performance in even the most demanding situations. Customers can rely on the STY139N65M5 for efficient and reliable operation in their power management designs.
