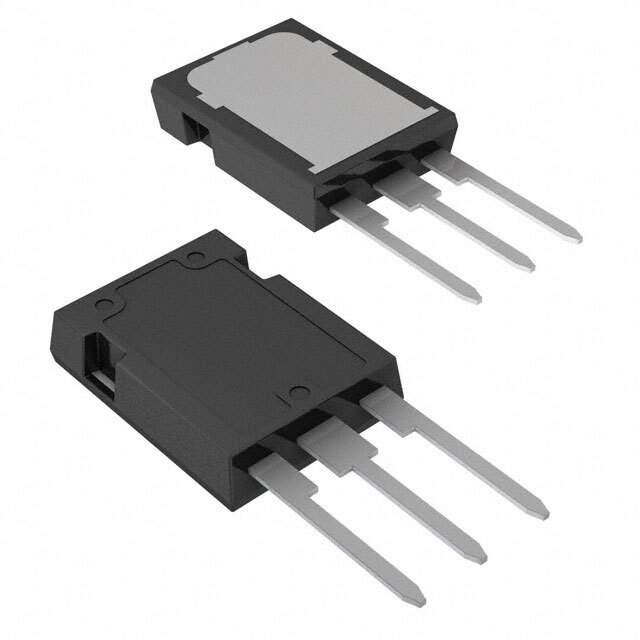

The STY80NM60N is a high-performance N-channel Power MOSFET presented by STMicroelectronics, designed to meet the efficiency and reliability requirements of modern high-density power applications. This device is a part of the MDmesh™ technology line that combines the multiple drain process with the company's PowerMESH™ horizontal layout, providing an optimized balance between on-resistance and switching performance.

Key Features

• Voltage Rating: The STY80NM60N operates at a drain-source voltage (V<sub>DS) of 600V, making it suitable for high-voltage applications.
• Low On-Resistance: With a typical on-resistance (R<sub>DS(on)) of only 80 mΩ, this MOSFET offers reduced conduction losses and improved efficiency.
• Current Capacity: It boasts a continuous drain current (I<sub>D) of 20 A, providing robust performance for a wide range of applications.
• Fast Switching Speed: The device is designed for fast switching, enhancing performance in applications where switching losses are critical.
• Enhanced dv/dt Capability: The STY80NM60N is engineered to handle high dv/dt rates, ensuring reliability under harsh switching conditions.

Applications

The STY80NM60N is ideal for a variety of applications, including:

• Switching power supplies and DC/DC converters
• Motor control systems
• LED lighting solutions
• Power management circuits
• High-performance computing and server power supplies

Benefits

By integrating the STY80NM60N into your power designs, you can expect:

• Enhanced power efficiency due to low on-resistance and fast switching capabilities.
• High reliability and long service life, thanks to its robust construction and advanced MDmesh™ technology.
• Compatibility with high-voltage applications, providing designers with greater flexibility in system design.
• Improved thermal performance, which can lead to reduced cooling requirements and system size.

Overall, the STY80NM60N from STMicroelectronics represents a strategic choice for designers looking to optimize power systems for efficiency, reliability, and performance.
